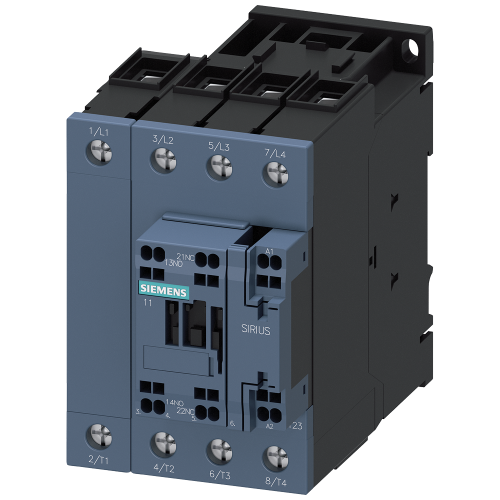

3RT23363XB400LA2

Contactor, 4 NO, AC-1: 60 A railway 24 V DC, 0.7 ... 1.25* US, 4-pole, 4 NO, Size S2, Spring-type te

Manufacturer's No: 3RT2336-3XB40-0LA2     Manufacturer: Siemens
Contactor, 4 NO, AC-1: 60 A railway 24 V DC, 0.7 ... 1.25* US, 4-pole, 4 NO, Size S2, Spring-type te

Availability On Request

£423.53
  • Traction contactor for AC-1 applications
  • Rated at 60 A, 400 V, and 40°C
  • 4-pole design with 24 V DC coil
  • Operating voltage range of 0.7-1.25 times the rated voltage
  • Electronic drive with integrated varistor
  • Auxiliary contacts: 1 normally open + 1 normally closed
  • Main circuit connection: screw terminal
  • Control and auxiliary circuit connection: spring-loaded terminal
  • Size: S2

Accessories

Spare part

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2336-3XB40-0LA2
Net Weight -
1.25kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation power NEMA -
- Kilowatt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
4
Rated control supply voltage at DC -
24 Volt
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Rated operation current Ie at AC-3, 400 V -
38 Ampere
Rated operation current Ie at AC-4, 400 V -
41 Ampere
Rated operation power at AC-4, 400 V -
22 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC

Availability On Request

£423.53
