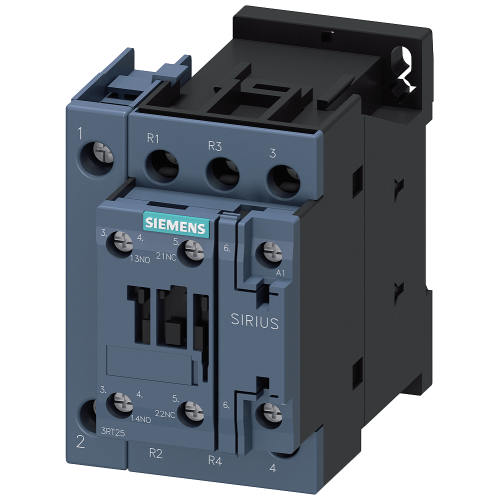

3RT25261AB00

Power contactor, AC-3 25 A, 11kW / 400 V 2 NO + 2 NC 24 V AC, 50 Hz 4-pole size S0 screw terminals

Manufacturer's No: 3RT2526-1AB00     Manufacturer: Siemens
Power contactor, AC-3 25 A, 11kW / 400 V 2 NO + 2 NC 24 V AC, 50 Hz 4-pole size S0 screw terminals

View 3D

Availability Back Order

£93.45
  • Power contactor for AC-3 applications
  • Rated current: 25 A
  • Rated power: 11 kW at 400 V
  • 4-pole contactor with 2 normally open (NO) and 2 normally closed (NC) main contacts
  • 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts
  • Control voltage: 24 V AC, 50 Hz
  • Screw terminal connection
  • Size: S0

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order

Spare part

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2526-1AB00
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
2
Rated operation current Ie at AC-1, 400 V -
40 Ampere
Rated operation current Ie at AC-3, 400 V -
25 Ampere
Rated operation power at AC-3, 400 V -
11 Kilowatt
Rated operation power NEMA -
11.03248125 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC

Availability Back Order

£93.45
