3RT25262AB00

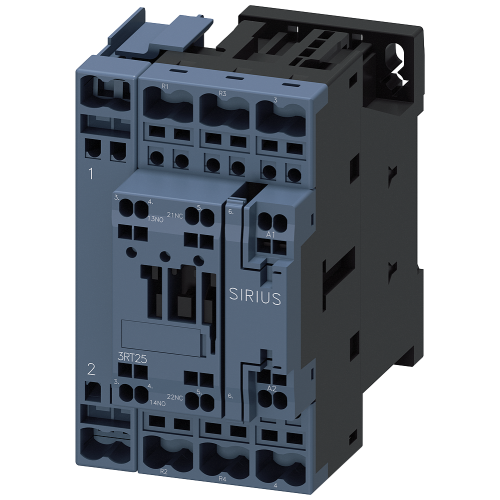

Power contactor, AC-3 25 A, 11kW / 400 V 2 NO + 2 NC 24 V AC, 50 Hz 4-pole size S0 Spring-type term

Manufacturer's No: 3RT2526-2AB00     Manufacturer: Siemens

Availability Back Order

£95.44
  • Power contactor for AC-3 applications
  • Rated current: 25 A
  • Rated power: 11 kW at 400 V
  • Configuration: 4-pole
  • Control voltage: 24 V AC, 50 Hz
  • Main contacts: 2 Normally Open (NO) + 2 Normally Closed (NC)
  • Auxiliary contacts: 1 NO + 1 NC
  • Spring-loaded terminals
  • Size: S0

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order

Spare part

Instructional video
Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video


Product

Manufacturer Material ID -
3RT2526-2AB00
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
2
Rated operation current Ie at AC-1, 400 V -
40 Ampere
Rated operation current Ie at AC-3, 400 V -
25 Ampere
Rated operation power at AC-3, 400 V -
11 Kilowatt
Rated operation power NEMA -
11.03248125 Kilowatt
Type of electrical connection of main circuit -
Spring clamp connection
Voltage type for actuating -
AC

Availability Back Order

£95.44
