3SU11001LB201PH0

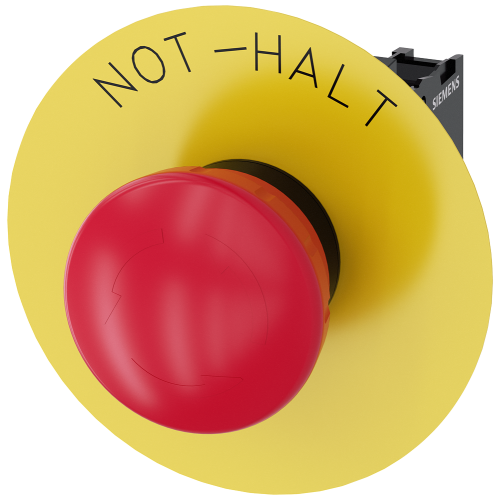

Emergency stop mushroom pushbutton, 22 mm, round, plastic, red, 1 NC, 1 NC, screw terminal

Manufacturer's No: 3SU1100-1LB20-1PH0     Manufacturer: Siemens
Emergency stop mushroom pushbutton, 22 mm, round, plastic, red, 1 NC, 1 NC, screw terminal

Availability On Request

POA
  • Emergency stop mushroom pushbutton
    • 22 mm diameter, round, plastic, red
    • 1 NC contact, screw terminal
    • Latching, Rotate-to-unlatch
    • Complies with DIN EN ISO13850
    • Yellow backing plate with "EMERGENCY STOP" inscription
    • Includes holder
  • SIRIUS ACT pushbuttons for safety-related applications
    • Cannot be overruled
    • Suitable for industrial and outdoor use
    • High degree of protection against dust, oils, and caustic solutions
    • Can withstand high-pressure jet cleaning
  • Easy installation with innovative snap-on concept
    • One-hand installation without special tools
    • Groove-free mounting holes with twist prevention
  • Connectivity options: PROFINET, AS-Interface, IO-Link
    • Reduces wiring time and effort
    • Minimizes error sources and offers flexibility
  • Available in various versions:
    • Mushroom diameter: 30/40/60 mm
    • Illuminated/non-illuminated
    • Pull-to-unlatch/rotate-to-unlatch/key-operated release
  • Online Configurator for easy selection and ordering
    • Extensive documentation available
  • Complete unit delivery includes holders and modules

Accessories

Component part

Follow-up article

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1100-1LB20-1PH0
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Colour front ring -
UN
Type of electric connection -
UN
Material front ring -
UN
Construction type lens -
UN
Supply voltage lamp -
- Volt
Degree of protection (IP) -
IP67/IP69K
Colour button -
Red
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other
Height opening -
30.3 Millimetre
Hole diameter -
22.3 Millimetre
Number of command positions -
1
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
0
Type of button -
Mushroom
Width opening -
75 Millimetre

Availability On Request

POA
