3SU10001LB200AA0

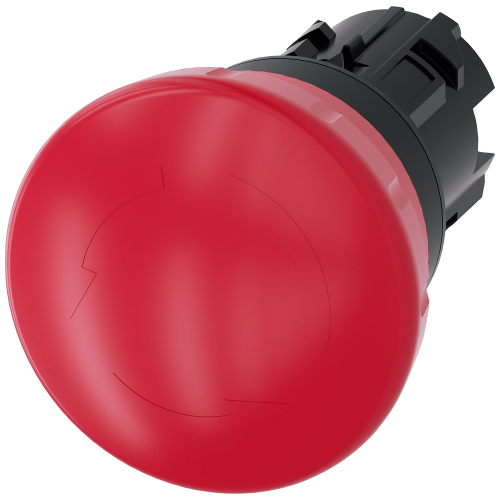

Emergency stop mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, latching according to EN ISO 13850, rotate-to-unlatch

Manufacturer's No: 3SU1000-1LB20-0AA0     Manufacturer: Siemens
Emergency stop mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, latching according to EN ISO 13850, rotate-to-unlatch

Availability On Request

POA
  • Emergency stop mushroom pushbutton - 22 mm diameter - Round shape - Plastic material - Red color - 40 mm length - Latching mechanism according to EN ISO 13850 - Rotate-to-unlatch feature

  • SIRIUS ACT pushbuttons designed for safety-related applications - Compliant with EN ISO 13850 standards - Cannot be overruled

  • Siemens SIRIUS ACT pushbuttons and signaling devices - Global product approvals - Available in four design lines: metal and plastic - Easy snap-on installation without special tools - Groove-free mounting holes with twist prevention - High degree of protection for industrial and outdoor use - Resistant to dust, oils, and caustic solutions - Suitable for cleaning with high-pressure jet

  • Connectivity options - Compatible with PROFINET, AS-Interface, and IO-Link - Reduces wiring time and effort - Minimizes error sources - Provides flexibility in installation

  • Online Configurator for device selection and ordering - Extensive documentation available - Manual, 3D data, terminal diagram

  • Available versions - Mushroom diameter: 30/40/60 mm - Illuminated/non-illuminated options - Pull-to-unlatch/rotate-to-unlatch/key-operated release

  • Note: Single device, holders, and modules to be ordered separately

Mandatory additional product

Selectable mandatory product

Accessories

Follow-up article

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Instructional video
Instructional video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Presentation video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1000-1LB20-0AA0
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

Type of button -
UN
Colour front ring -
UN
Material front ring -
UN
Degree of protection (IP) -
IP67/IP69K
Colour button -
Red
Construction type lens -
Round
Degree of protection (IP rating) -
IP67/IP69K
Degree of protection (NEMA) -
Other

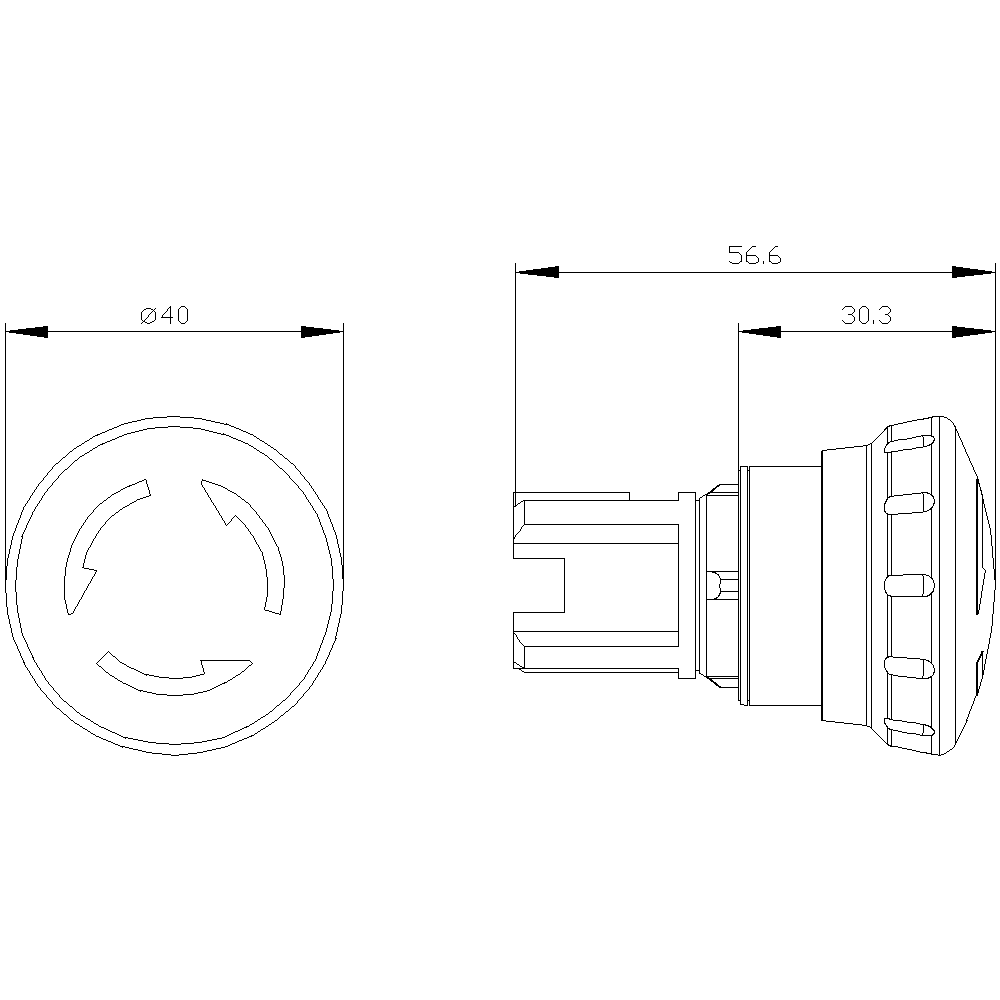

Diameter cap -
40 Millimetre
Height opening -
30.3 Millimetre
Hole diameter -
22.3 Millimetre
Suitable for emergency stop -
Switching function latching -
Unlocking method -
Turn-release
Width opening -
40 Millimetre

Availability On Request

POA
