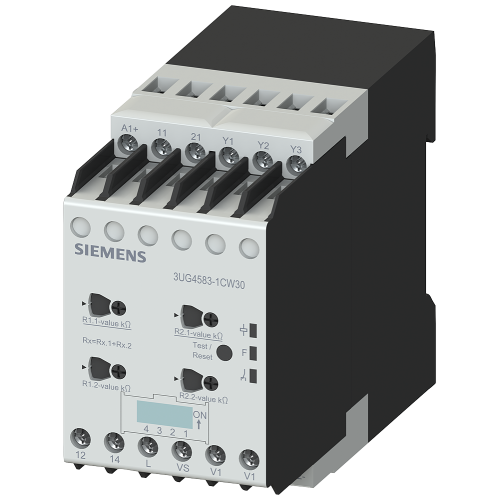

3UG45831CW30

Insulation monitoring relay for ungrounded (IT) supply systems up to 400 V AC, 15-400 Hz and up to 6

Manufacturer's No: 3UG4583-1CW30     Manufacturer: Siemens
Insulation monitoring relay for ungrounded (IT) supply systems up to 400 V AC, 15-400 Hz and up to 6

View 3D

Availability Back Order

POA

This product has been superseded by

3UG45831CW31

Please check compatibility before purchasing.

  • Insulation monitoring relay for ungrounded (IT) supply systems
  • Suitable for systems up to 400 V AC, 15-400 Hz
  • Product discontinued since: 15/12/22
  • Maximum of 6 units
  • Successor product: 3UG4583-1CW31

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
3UG4583-1CW30
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
EAR99 / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated voltage -
- Volt
Function -
For three-phase supply system
Rated frequency -
15 Hertz
Line capacity -
20 Mikro-Farad
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Response value impedance 1 -
1 Kilo-Ohm
Response value impedance 2 -
2 Kilo-Ohm
Voltage type for actuating -
AC/DC

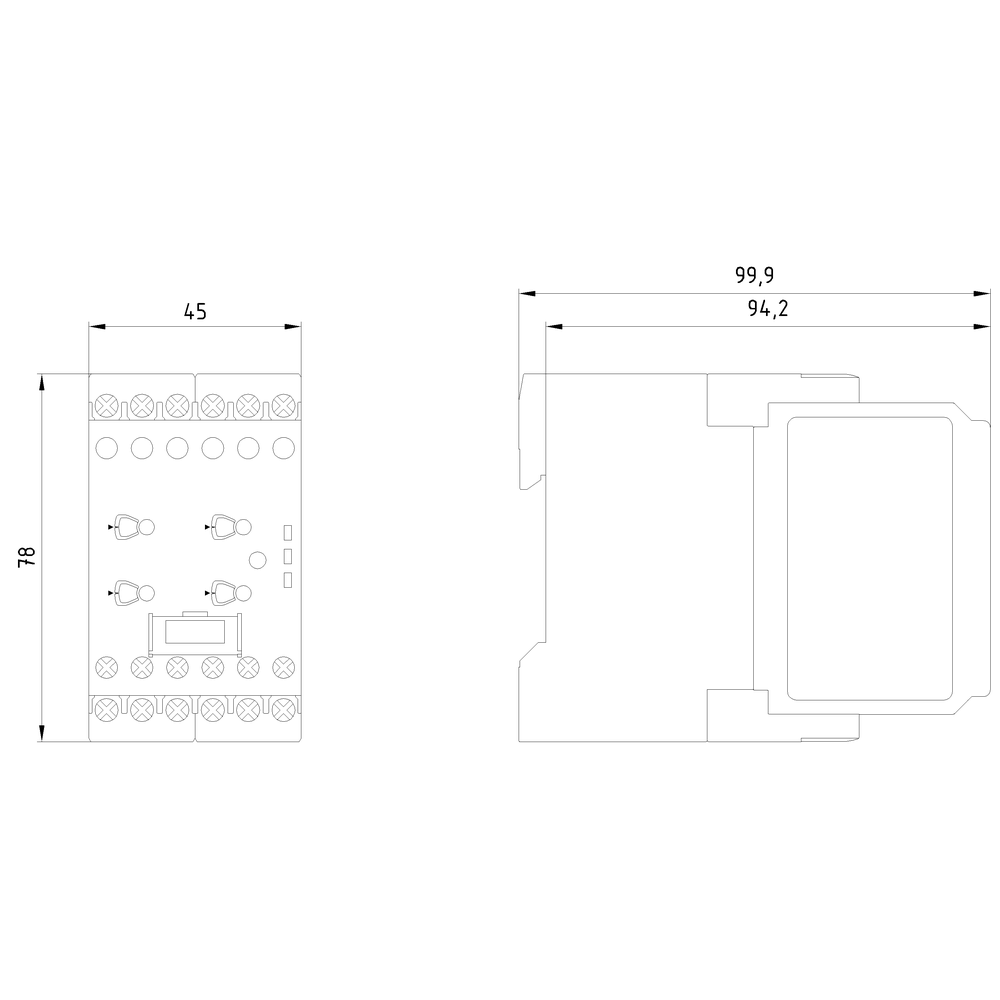

Depth -
100 Millimetre
Error registration possible -
Height -
78 Millimetre
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Type of electric connection -
Screw connection
Width -
45 Millimetre

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

3UG45831CW31

Please check compatibility before purchasing.
