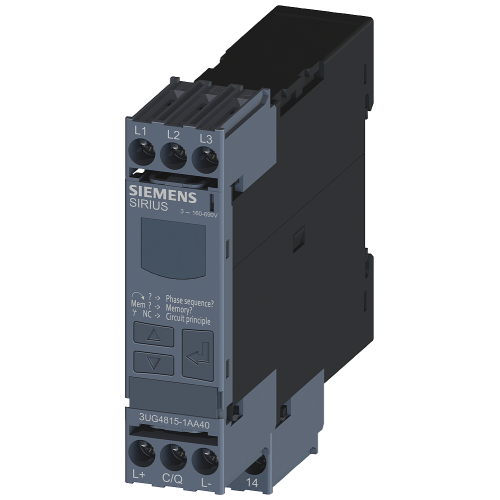

3UG48151AA40

Digital monitoring relay 3-phase supply voltage for IO-Link 50...60 Hz AC 3 x 160 to 690 V Phase seq

Manufacturer's No: 3UG4815-1AA40     Manufacturer: Siemens

Availability In Stock

£228.67

This product has been superseded by

3UG58161AA40

Please check compatibility before purchasing.

  • Product Type: 3UG5816-1AA40 Line Monitoring IO-Link Digital Monitoring Relay
  • Voltage Range: 3 x 160 to 690 V AC, 50-60 Hz
  • Functions: Phase Sequence, Phase Failure, Phase Asymmetry, Undervoltage, Overvoltage
  • Features: Hysteresis 1-20 V, Line Stabilization Delay, Tripping Delay Time
  • Contact Type: 1 Changeover Contact
  • Terminal Type: Screw Terminal

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4815-1AA40
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
DC
Depth -
91 Millimetre
Function over voltage detection -
Function under voltage detection -
Height -
102 Millimetre
Max. permitted delay-on energization time -
999.9 Second
Max. permitted off-delay time -
999.9 Second
Min. adjustable delay-on energization time -
0 Second
Min. adjustable off-delay time -
0 Second
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Phase failure detection -
Phase imbalance monitoring -
Phase sequence monitoring -
Type of electric connection -
Screw connection
Voltage measurement range -
160 Volt
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre
With detachable clamps -

Availability In Stock

£228.67
Sign in or Register for customer prices.

This product has been superseded by

3UG58161AA40

Please check compatibility before purchasing.
