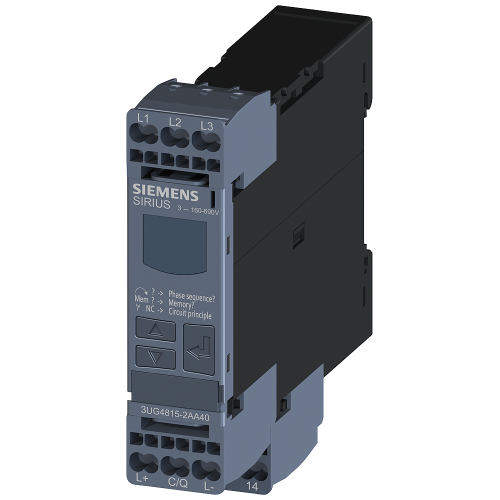

3UG48152AA40

Digital monitoring relay 3-phase supply voltage for IO-Link 50...60 Hz AC 3 x 160 to 690 V Phase seq

Manufacturer's No: 3UG4815-2AA40     Manufacturer: Siemens

Availability Back Order

£234.63

This product has been superseded by

3UG58162AA40

Please check compatibility before purchasing.

  • Type: Digital monitoring relay
  • Application: Line monitoring for 3-phase supply voltage
  • Voltage Range: 160V to 690V AC
  • Features: Phase sequence, phase failure, phase asymmetry detection
  • Additional Features: Undervoltage and overvoltage protection
  • Input Frequency: 50-60 Hz
  • Communication: IO-Link compatible
  • Contact Configuration: 1 changeover contact
  • Connection: Spring-loaded connection system
  • Hysteresis: 1-20V

Read more

  • Stabilization Delay: Yes
  • Tripping Delay Time: 1 unit

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3UG4815-2AA40
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
0 Volt
Rated control supply voltage Us at AC 60HZ -
0 Volt
Rated control supply voltage Us at DC -
24 Volt
Rated control supply voltage at AC 50 Hz -
0 Volt
Rated control supply voltage at AC 60 Hz -
0 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
DC
Depth -
91 Millimetre
Function over voltage detection -
Function under voltage detection -
Height -
103 Millimetre
Max. permitted delay-on energization time -
999.9 Second
Max. permitted off-delay time -
999.9 Second
Min. adjustable delay-on energization time -
0 Second
Min. adjustable off-delay time -
0 Second
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Phase failure detection -
Phase imbalance monitoring -
Phase sequence monitoring -
Type of electric connection -
Spring clamp connection
Voltage measurement range -
160 Volt
Voltage type of supply voltage -
DC
Width -
22.5 Millimetre
With detachable clamps -

Availability Back Order

£234.63
Sign in or Register for customer prices.

This product has been superseded by

3UG58162AA40

Please check compatibility before purchasing.
