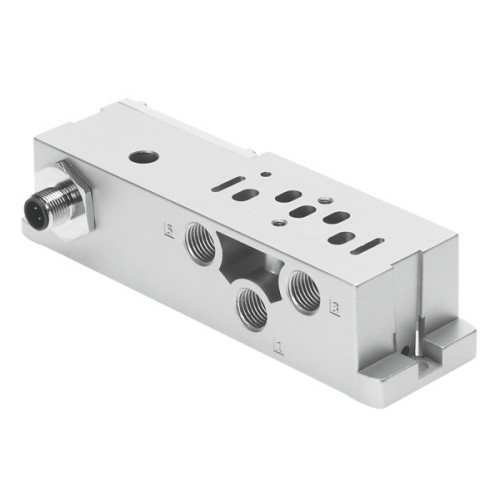

VABS-S4-2S-G18-R3 Sub-base

Manufacturer's No: VABS-S4-2S-G18-R3     Manufacturer: Festo
VABS-S4-2S-G18-R3 Sub-base

Availability Available to order

£94.00
  • Construction width: 18 mm
  • Operating pressure: -0.09 MPa, 1 MPa, -0.9 bar, 10 bar
  • Operational voltage range DC: 24 V
  • Immunity to surge: 0.8 kV
  • Current rating at 40°C: 2 A
  • Pollution degree: 3
  • Explosion protection certification: EPL Gc (GB)
  • ATEX category gas: II 3G
  • Explosion ignition protection type for gas: Ex ec IIC T3 Gc X
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]

Read more

  • Corrosion resistance class CRC: 0 - No corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Max. surface temperature assembly: T3
  • Degree of protection: IP65, NEMA 4, In assembled state
  • Ambient temperature: -5°C to 50°C
  • Product weight: 192 g
  • Type of mounting: With through-hole, To ISO 15407-2
  • Material sub-base: Die-cast aluminium
  • CE mark: To EU EMC Directive, EU Explosion Protection Directive (ATEX), EU RoHS Directive
  • UKCA marking: To UK instructions for EMC, UK EX instructions, UK RoHS instructions
  • Note on operating and pilot medium: Lubricated operation possible (lubricated operation always required)
  • Note on materials: RoHS-compliant

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
VABS-S4-2S-G18-R3
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable with connector
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
37 Millimetre
Length of sensor -
18 Millimetre
Width sensor -
26 Millimetre
