542209

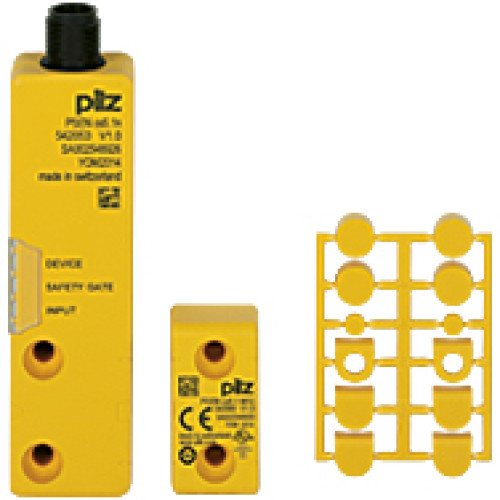

RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, IP67, 4 directions of actuation, Operating distance (directi

Manufacturer's No: PSEN cs6.2 M12/8/PSEN cs6.1 M12 1unit     Manufacturer: Pilz
RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector, IP67, 4 directions of actuation, Operating distance (direction of actuation square): 11 mm, Sao = 8 mm, Sar = 20 mm, PU = 1 piece

Availability Back Order

£129.16
  • RFiD safety switch with 2 safe SC outputs
  • 8-pin M12 male connector
  • IP67 rated for dust and water resistance
  • 4 actuation directions
  • Typical operating distance: 11 mm (square)
  • Safety distance: 8 mm (Sao)
  • Actuation range: 20 mm (Sar)
  • Fully coded switch with actuator, uniquely coded
  • Package includes 1 piece

Accessories



Product

Manufacturer Material ID -
PSEN cs6.2 M12/8/PSEN cs6.1 M12 1unit
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable with connector
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
26.4 Millimetre
Length of sensor -
19 Millimetre
Width sensor -
101.6 Millimetre
