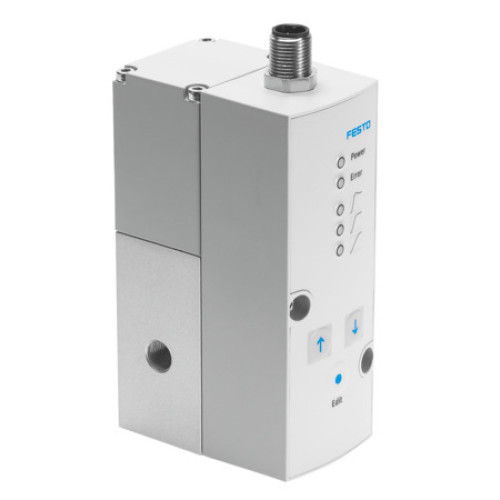

VPPM-6F-L-1-F-0L10H-A4N Proportional-pressure regulator

Manufacturer's No: VPPM-6F-L-1-F-0L10H-A4N     Manufacturer: Festo
VPPM-6F-L-1-F-0L10H-A4N Proportional-pressure regulator

Availability Available to order

£124.22
  • Proportional-pressure regulator VPPM-6F-L-1-F-0L10H-A4N with electric setpoint specification and two-stage control circuit
  • Nominal diameter: 6 mm (pressurisation), 4.5 mm (exhaust)
  • Type of actuation: Electrical
  • Sealing principle: Soft
  • Design: Piloted diaphragm regulator
  • Safety feature: Maintains unregulated output pressure if power supply cable is interrupted
  • Pressure regulation range: 0.01 MPa to 10 MPa
  • Max. pressure hysteresis: 0.05 bar
  • Standard nominal flow rate: 1400 L/min
  • Operational voltage range DC: 21.6 V to 26.4 V

Read more

  • Max. current consumption: 300 mA
  • Max. electrical power consumption: 7 W
  • Switching output: NPN
  • Signal range for analogue output and input: 4 - 20 mA
  • Operating medium: Compressed air and inert gases
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • Degree of protection: IP65
  • Temperature range: 0°C to 60°C
  • Product weight: 400 g
  • Total accuracy: 1.25%FS
  • Material housing: Wrought aluminium alloy, anodised
  • Electrical connection: 8-pin, M12, plugs
  • Type of mounting: With through-hole, accessories, or either
  • Pneumatic connection: Sub-base for ports 1, 2, and 3
  • RoHS-compliant materials
  • Certifications: RCM, c UL us listed (OL), KC-EMV, CE mark, UKCA marking
  • Symbol: 995303
  • Display type: LED
  • Note: Lubricated operation not possible, media temperature range 10°C to 50°C
  • Certificate issuing authority: UL E322346

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
VPPM-6F-L-1-F-0L10H-A4N
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable with connector
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
26.4 Millimetre
Length of sensor -
13 Millimetre
Width sensor -
97.6 Millimetre
