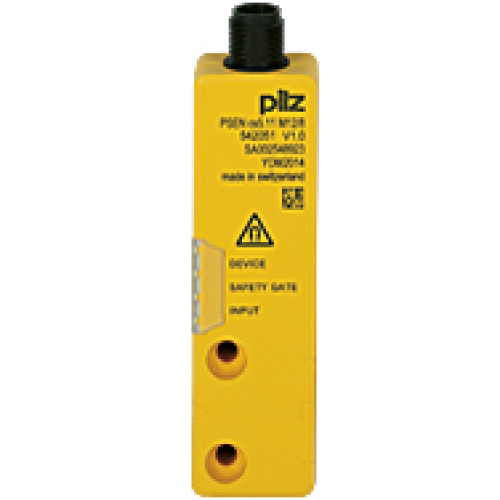

542263

RFiD safety switch 2 safe SC outputs male connector M12/5- pin for applications up to SIL 3 or PL e

Manufacturer's No: PSEN cs6.21n 1switch     Manufacturer: Pilz
RFiD safety switch 2 safe SC outputs male connector M12/5- pin for applications up to SIL 3 or PL e

Availability On Request

£135.76
  • RFiD safety switch with 2 safe SC outputs
  • Male connector M12/5-pin
  • Suitable for applications up to SIL 3 or PL e
  • IP67 rated for protection against dust and water
  • Typical operating distance: 11 mm
  • Sao (Actuation distance): 8 mm
  • Sar (Release distance): 20 mm
  • Single uniquely coded switch
  • Magnetic latching mechanism

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
PSEN cs6.21n 1switch
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
41111926

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Cable with connector
Interface type -
None
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
26.4 Millimetre
Length of sensor -
19 Millimetre
Width sensor -
101.6 Millimetre
Pilz

Availability On Request

£135.76
