6AV66410AA110AX0

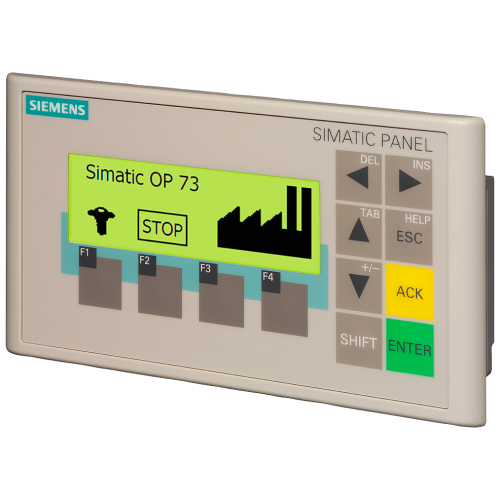

SIMATIC Operator Panel OP 73 3" LC display, graphics-capable, backlit, MPI-/PROFIBUS DP interface, t

Manufacturer's No: 6AV6641-0AA11-0AX0     Manufacturer: Siemens
SIMATIC Operator Panel OP 73 3" LC display, graphics-capable, backlit, MPI-/PROFIBUS DP interface, t

Availability Back Order

POA

This product has been superseded by

6AV66470AH113AX0

Please check compatibility before purchasing.

  • SIMATIC Operator Panel OP 73
  • 3" LC display, graphics-capable, backlit
  • MPI-/PROFIBUS DP interface
  • Memory up to 1.5 MB
  • Configurable from WinCC flexible 2004 Compact HSP
  • Contains open-source software
  • Software provided free of charge


Product

Manufacturer Material ID -
6AV6641-0AA11-0AX0
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Touch technology -
UN
Built-in depth -
28.5 Millimetre
Operation temperature -
0 Degrees celsius
Number of interfaces PROFINET -
0
Degree of protection (NEMA), front side -
4X
Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
84 Millimetre
Number of buttons with LED -
0
Number of colours of the display -
2
Number of function buttons, programmable -
4
Number of grey-scales/blue-scales of display -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of online languages -
5
Number of password levels -
50
Number of pixels, horizontal -
160
Number of pixels, vertical -
48
Number of system buttons -
8
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
28.5 Millimetre
Screen diagonal -
3 inch
Supply voltage DC -
20.4 Volt
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Type of display -
STN
Useful project memory/user memory -
256 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
154 Millimetre
With alpha numeric keyboard -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV66470AH113AX0

Please check compatibility before purchasing.
