6EP13347CA00

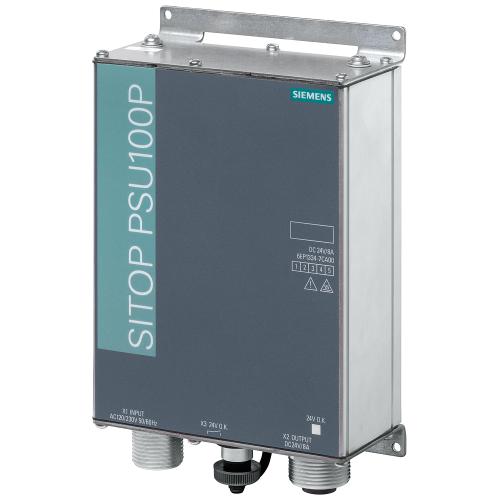

Power supply SITOP PSU100P, single-phase 24 V DC/8 A in IP67 for wall mounting

Manufacturer's No: 6EP1334-7CA00     Manufacturer: Siemens
Power supply SITOP PSU100P, single-phase 24 V DC/8 A in IP67 for wall mounting

View 3D

Availability Back Order

£445.00

This product has been superseded by

6EP13347CA10

Please check compatibility before purchasing.

  • Stabilized power supply
  • Input: 120/230 V AC
  • Output: 24 V DC, 8 A
  • IP67 rated

Accessories

Follow-up article



Product

Manufacturer Material ID -
6EP1334-7CA00
Net Weight -
1.45kg

Additional Product Information

Commodity Code -
85044090
Country of Origin -
HU
Minimum Order Quantity -
1
UNSPSC -
32121704

Technical Specification

-
Siemens
Built-in height -
- Millimetre
Power consumption -
- Voltampere
Width in number of modular spacings -
-
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in width -
120 Millimetre
Degree of protection (IP) -
IP67
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP67
Depth -
60.5 Millimetre
Direct mounting possible -
Height -
181 Millimetre
Max. output current 1 -
8 Ampere
Modular version -
Nominal value output current 1 -
8 Ampere
Nominal value output voltage 1 -
24 Volt
Output voltage stabilized -
Power output -
206 Watt
Rated supply voltage at AC 50 Hz -
230 Volt
Rated supply voltage at AC 60 Hz -
120 Volt
Recess width -
120 Millimetre
Short-circuit-proof -
Stabilized -
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Wall mounting possible -
Width -
120 Millimetre

Availability Back Order

£445.00
Sign in or Register for customer prices.

This product has been superseded by

6EP13347CA10

Please check compatibility before purchasing.
