6ES72720AA300YA1

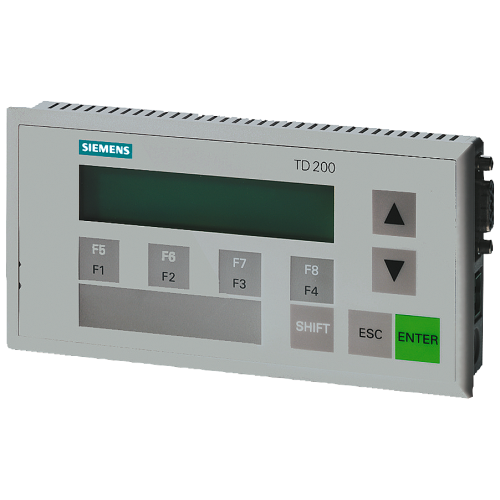

SIMATIC S7, TD 200 text display for S7-200, 2-line, with cable (2.5m) and installation accessories,

Manufacturer's No: 6ES7272-0AA30-0YA1     Manufacturer: Siemens
SIMATIC S7, TD 200 text display for S7-200, 2-line, with cable (2.5m) and installation accessories,

Availability Back Order

POA

This product has been superseded by

6AV66470AH113AX0

Please check compatibility before purchasing.

  • Product: SIMATIC S7 TD 200 text display
  • Compatibility: S7-200 PLC
  • Display: 2-line
  • Cable Length: 2.5m
  • Configuration: with STEP 7-Micro/WIN
  • ATEX Approval: Not included


Product

Manufacturer Material ID -
6ES7272-0AA30-0YA1
Net Weight -
0.42kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of system buttons -
-
Degree of protection (NEMA) -
UN
Built-in depth -
27 Millimetre
Operation temperature -
0 Degrees celsius
Number of characters per line -
20
Number of interfaces PROFINET -
0
Type of display -
LCD with background illumination
Degree of protection (IP), front side -
IP65
Height of the front -
76 Millimetre
Max. character height, display -
5 Millimetre
Number of buttons with LED -
0
Number of display characters per line -
20
Number of display lines -
2
Number of function buttons, programmable -
9
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of online languages -
6
Number of password levels -
1
Operating temperature -
0 Degrees celsius
Recess depth -
27 Millimetre
Supply voltage DC -
20.4 Volt
Supporting protocol for other bus systems -
Useful project memory/user memory -
0 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Width of the front -
148 Millimetre
With message indication -

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

6AV66470AH113AX0

Please check compatibility before purchasing.
