6SL35202XN011AB0

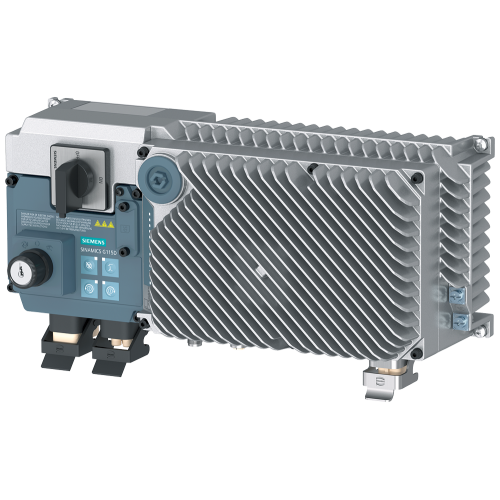

SINAMICS G115D, IP65/66 / UL type 4X, FSA, 3 AC 380-480 V,

Manufacturer's No: 6SL3520-2XN01-1AB0     Manufacturer: Siemens
SINAMICS G115D, IP65/66 / UL type 4X, FSA, 3 AC 380-480 V,

Availability Back Order

£1,165.59
  • Rated power: 1.1 kW for 3 seconds at 200%, 57 seconds at 150%, and 240 seconds at 87%
  • Radio interference suppression filter for Category C2
  • Input: 3AC 380-480V +/- 10%, 45-66Hz
  • Ambient temperature range: -30 to +40°C
  • Size: FSA
  • Protection class: IP65/66, UL Type 4X
  • Brake voltage: 180 V DC
  • Control options: Local remote control Q4/2 for 400 V AC, M12 for I/O and communication
  • Integrated 24 V DC PSU with looping through without fieldbus

Accessories



Product

Manufacturer Material ID -
6SL3520-2XN01-1AB0
Net Weight -
8.29kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
GB
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
26121609

Technical Specification

4-quadrant operation possible -
Application in industrial area permitted -
Depth -
129 Millimetre
Height -
216 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
1.1 Kilowatt
Max. output frequency -
550 Hertz
Number of digital inputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
6
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
10 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Type of converter -
U converter
Width -
380 Millimetre
With PC connection -

Availability Back Order

£1,165.59
