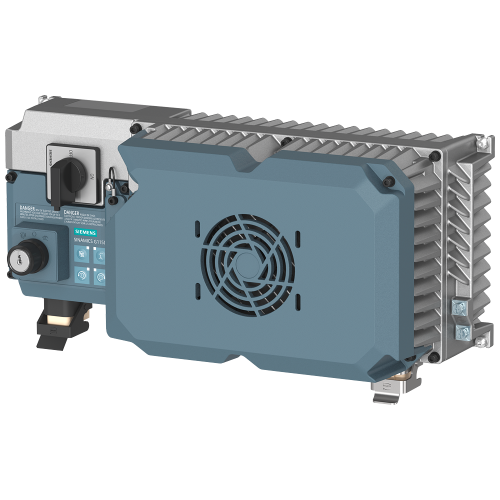

6SL35210XE455AB0

SINAMICS G115D, IP65/66 / UL type 4X, FSC, 3 AC 380-480 V,

Manufacturer's No: 6SL3521-0XE45-5AB0     Manufacturer: Siemens
SINAMICS G115D, IP65/66 / UL type 4X, FSC, 3 AC 380-480 V,

Availability Back Order

£2,057.13
  • Rated power: 5.5 kW for 3S 200%, 57S 150%, 240S 87%
  • Radio interference suppression filter for Cat. C2
  • Input: 3AC380-480V +/-10%, 45-66Hz
  • Ambient temperature: -30 to +40°C
  • Protection class: IP65/66, UL Type 4X
  • Brake voltage: 400 V AC
  • Operation options: Q4/2 for 400 V AC, Power M12 for 24 V DC, M12 for I/O and communication
  • Looping through Q8/0 for motor connection without fieldbus

Accessories



Product

Manufacturer Material ID -
6SL3521-0XE45-5AB0
Net Weight -
14.01kg

Additional Product Information

Commodity Code -
85044088
Country of Origin -
GB
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
43222605

Technical Specification

4-quadrant operation possible -
Application in industrial area permitted -
Depth -
169 Millimetre
Height -
180 Millimetre
Integrated breaking resistance -
Mains voltage -
380 Volt
Max. output at linear load at rated output voltage -
5.5 Kilowatt
Max. output frequency -
550 Hertz
Number of digital inputs -
4
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
6
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of phases input -
3
Number of phases output -
3
Relative symmetric net frequency tolerance -
10 Percentage
Relative symmetric net voltage tolerance -
-10 Percentage
Type of converter -
U converter
Width -
425 Millimetre
With PC connection -

Availability Back Order

£2,057.13
