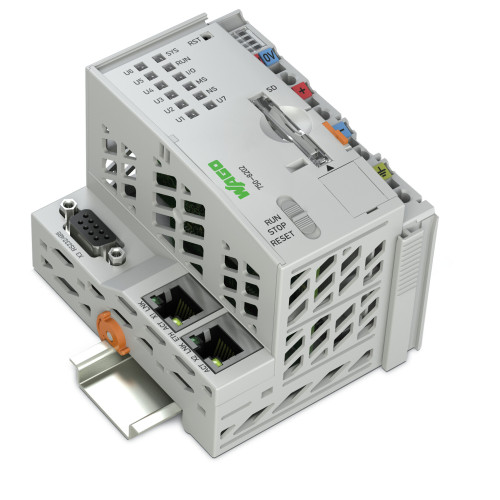

750-8202

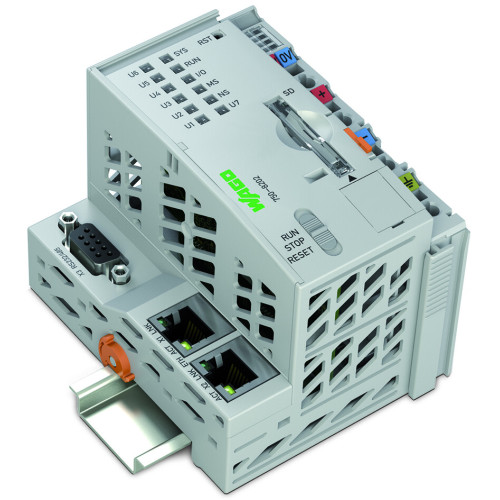

Controller PFC200, 2 x ETHERNET, RS-232/-485, light gray

Manufacturer's No: 750-8202     Manufacturer: WAGO
Controller PFC200, 2 x ETHERNET, RS-232/-485, light gray

Availability Back Order

POA
  • Controller model: PFC200
  • Communication interfaces: 2 x ETHERNET, RS-232/-485

Accessories

Miniature WSB Quick Marking System, Plain Marker Width 5 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501
Price £2.82
Back Order

Group marker carrier, transparent

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 750-103
Price £0.73
Back Order

Shield clamping saddle, 12.4 mm wide, 3 ... 8 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 790-208
Price £6.31
Back Order

Shield clamping saddle, 21.8 mm wide, 6 ... 16 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 790-216
Price £8.26
Back Order

Shield clamping saddle, 30 mm wide, 6 ... 20 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 790-220
Price £10.49
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-007
Price £3.96
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-006
Price £3.96
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-005
Price £3.96
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Green

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-023
Price £3.96
Back Order


Product

Manufacturer Material ID -
750-8202
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Minimum Order Quantity -
1
RoHs Compliance -
YES
UNSPSC -
43201503

Technical Specification

-
Wago
Processing time (1K, binary operation) -
- Millisecond
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Number of interfaces PROFINET -
0
Additional program memory possible -
Depth -
100 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
65 Millimetre
Max. number of time switches -
0
Memory size -
128 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
0
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Supply voltage DC -
24 Volt
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
79 Millimetre

Availability Back Order

POA
