753-666/000-003

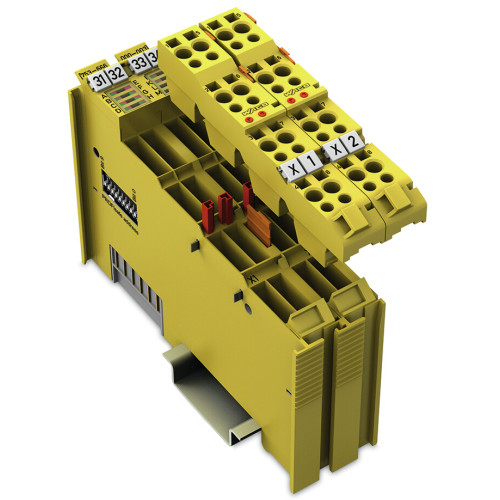

Fail-safe 4/2 channel digital input/output, 24 VDC, 10 A

Manufacturer's No: 753-666/000-003     Manufacturer: WAGO
Fail-safe 4/2 channel digital input/output, 24 VDC, 10 A

Availability On Request

POA
  • Fail-safe 4/2 channel digital input/output
  • 24 VDC, 10 A
  • PROFIsafe V2.0 iPar

Accessories

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.82
On Request

753 Series coding elements, red

Product Code - 753-150
Price £0.08
On Request

Plug, Safety, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 753-120
Price £3.15
In Stock

Group marker carrier, transparent

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 750-103
Price £0.73
On Request

Shield clamping saddle, 12.4 mm wide, 3 ... 8 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 790-208
Price £6.31
On Request

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £3.96
On Request

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £3.96
On Request

Group marker carrier, transparent

Product Code - 750-107
Price £0.77
On Request


Product

Manufacturer Material ID -
753-666/000-003
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Time delay at signal exchange -
- Millisecond
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
Degree of protection (IP) -
IP20
Category according to EN 954-1 -
4
Number of interfaces PROFINET -
0
Performance level acc. EN ISO 13849-1 -
Level e
Type of voltage (input voltage) -
DC
Degree of protection (IP rating) -
IP20
Depth -
69 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
100 Millimetre
Input current at signal 1 -
2.2 Milliampere
Number of digital inputs -
4
Number of digital outputs -
2
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
20 Ampere
Performance level acc. to EN ISO 13849-1 -
Level e
Permitted voltage at output -
24 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
SIL according to IEC 61508 -
3
Suitable for safety functions -
Supply voltage DC -
24 Volt
System accessory -
Type of digital output -
Other
Type of electric connection -
Spring clamp connection
Type of output voltage -
DC
Voltage type of supply voltage -
DC
Width -
24 Millimetre

Availability On Request

POA
