769-176/000-006

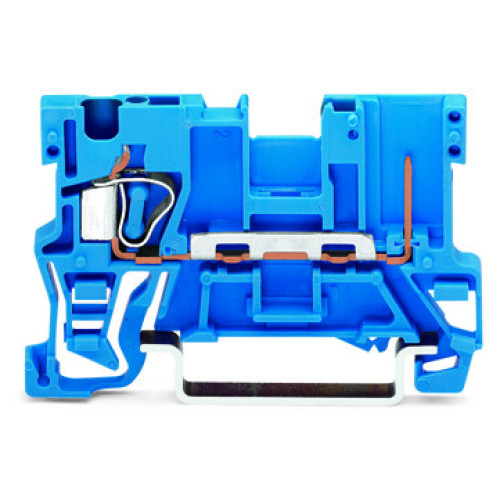

1-conductor/1-pin carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 4 mm², blue

Manufacturer's No: 769-176/000-006     Manufacturer: WAGO
1-conductor/1-pin carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 4 mm², blue

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

£1.13
  • Terminal block for DIN-rail 35 x 15 and 35 x 7.5
  • 1-conductor/1-pin design
  • CAGE CLAMP® technology
  • Wire size capacity: 4.00 mm²
  • Color: Blue

Accessories

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.82
On Request

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.33
On Request

Ferrule, Sleeve for 0.75 mm² / AWG 20, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-102
Price £0.02
On Request

Ferrule, Sleeve for 0.5 mm² / AWG 22, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-101
Price £0.02
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, uninsulated

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-103
Price £0.02
In Stock

Ferrule, Sleeve for 1.5 mm² / AWG 16, uninsulated, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-104
Price £0.02
On Request

Ferrule, Sleeve for 0.5 mm² / 20 AWG, insulated, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-201
Price £0.05
On Request

Ferrule, Sleeve for 0.75 mm² / 18 AWG, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-202
Price £0.05
On Request

Ferrule, Sleeve for 1 mm² / AWG 18, insulated, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-203
Price £0.05
In Stock

Ferrule, Sleeve for 1.5 mm² / AWG 16, insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-204
Price £0.05
On Request

Ferrule, Sleeve for 2.5 mm² / AWG 14, insulated, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-206
Price £0.05
On Request

Ferrule, Sleeve for 0.25 mm² / AWG 24, insulated, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-301
Price £0.05
On Request

Ferrule, Sleeve for 0.34 mm² / 22 AWG, insulated, light turquoise

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 216-302
Price £0.05
On Request

Push-in type wire jumper, insulated, 60 mm long, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-125
Price £4.72
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-126
Price £4.75
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-127
Price £4.91
On Request

Staggered jumper, from 1 to 6, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-456
Price £1.29
On Request

Test plug adapter, 5 mm wide, for test plug (2.3 mm Ø), gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-404
Price £1.64
On Request

Jumper, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-409
Price £0.65
On Request

End and intermediate plate, 1.1 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-308
Price £0.40
On Request

Staggered jumper, from 1 to 3, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-453
Price £0.80
On Request

Staggered jumper, from 1 to 4, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-454
Price £0.99
On Request

Staggered jumper, from 1 to 5, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-455
Price £1.11
On Request

Spacer module, modular, bridging commoned terminal blocks, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-419
Price £0.33
On Request

Insulation stop, 0.25 - 0.5 mm², 5 pieces/strip, light gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-471
Price £0.11
On Request

Push-in type wire jumper, 0.75 mm², insulated, black

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 249-123
Price £4.88
On Request

Test plug module, modular, suitable for all WAGO 280 and 780 Series rail-mounted terminal blocks with jumper slots in the current bar, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 280-418
Price £1.38
On Request

Pin cover, with marker slot for miniature WSB, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-438
Price £0.27
On Request

Pin cover, with marker slot for miniature WSB, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-439
Price POA
On Request

Insulation stop, 0.75 - 1 mm², 5 pieces/strip, dark gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-472
Price POA
On Request

Staggered jumper, from 1 to 7, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-457
Price £1.54
On Request

Staggered jumper, from 1 to 8, insulated, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 780-458
Price £1.79
On Request


Product

Manufacturer Material ID -
769-176/000-006
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85234925
Country of Origin -
CN
Minimum Order Quantity -
100
UNSPSC -
39121402

Technical Specification

Length -
52.5 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
28.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.08 Square millimetre
Connectable conductor cross section multi-wired -
0.08 Square millimetre
Connectable conductor cross section solid-core -
0.08 Square millimetre
Depth -
28.5 Millimetre
Height -
52.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
3
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
32 Ampere
Rated voltage -
500 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Plug-in connection
Width -
5 Millimetre
