769-223

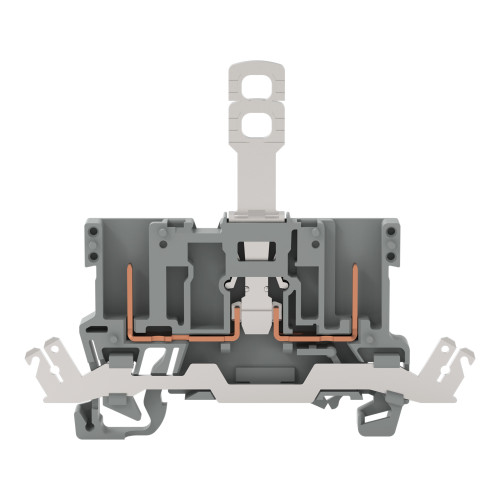

2-pin disconnect carrier terminal block, with shield contact, for DIN-rail 35 x 15 and 35 x 7.5, gray

Manufacturer's No: 769-223     Manufacturer: WAGO
2-pin disconnect carrier terminal block, with shield contact, for DIN-rail 35 x 15 and 35 x 7.5, gray

Availability On Request

Once added to the cart, you can split this pack for a charge of £16.50

POA
  • 2-pin disconnect carrier terminal block
  • Includes shield contact
  • Compatible with DIN-rail sizes 35 x 15 and 35 x 7.5
  • Color: gray

Accessories

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.82
On Request

Mounting carrier, for isolated mounting on DIN 35 rails, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 209-106
Price £0.33
On Request

End and intermediate plate, 1.1 mm thick, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-305
Price £0.40
On Request

End and intermediate plate, 1.1 mm thick, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-306
Price £0.40
On Request

Pin cover, with marker slot for miniature WSB, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-438
Price £0.27
On Request

Pin cover, with marker slot for miniature WSB, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 769-439
Price POA
On Request


Product

Manufacturer Material ID -
769-223
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85365005
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Connectable conductor cross section solid-core -
- Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
71.4 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
5 Millimetre
Height at lowest possible mounting height -
28.5 Millimetre
Connection position -
Above
Closing plate required -
Colour -
Grey
Depth -
28.5 Millimetre
Height -
71.5 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
16 Ampere
Rated voltage -
250 Volt
Type of cross disconnection -
None
Type of electrical connection 1 -
Plug-in connection
Type of electrical connection 2 -
Plug-in connection
Type of slitting -
None
Width -
5 Millimetre
