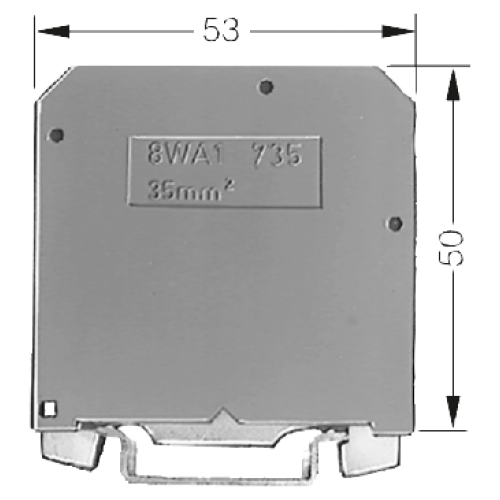

8WA10111PM00

PEN terminal thermoplast PA6.6, Screw terminal both sides, green-yellow, 16mm Sz. 35

Manufacturer's No: 8WA1011-1PM00     Manufacturer: Siemens
PEN terminal thermoplast PA6.6, Screw terminal both sides, green-yellow, 16mm Sz. 35

Availability On Request

POA

This product has been superseded by

8WH10000CM07

Please check compatibility before purchasing.

  • PEN terminal thermoplast PA6.6
  • Screw terminal on both sides
  • Color: green-yellow
  • Size: 16mm Sz. 35
  • Discontinued since: 09/10/23
  • Successor: 8WH10000CM07


Product

Manufacturer Material ID -
8WA1011-1PM00
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
N / N
Minimum Order Quantity -
25
UNSPSC -
39121410

Technical Specification

Length -
53 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
50 Millimetre
Connection position -
Sideways
Colour -
Green/yellow
Connectable conductor cross section fine-strand with cable end sleeve -
35 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
35 Square millimetre
Connectable conductor cross section multi-wired -
35 Square millimetre
Connectable conductor cross section solid-core -
35 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
1
Number of levels -
2
Operating temperature -
-25 Degrees celsius
PEN function possible -
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH10000CM07

Please check compatibility before purchasing.
