8WH10010AK01

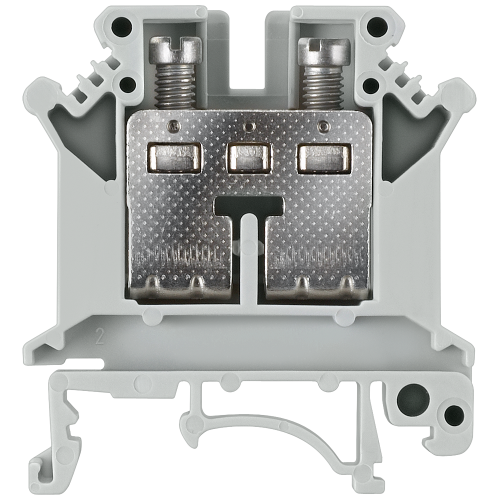

INSTA-T. 16QMM,10MM, BLUE

Manufacturer's No: 8WH1001-0AK01     Manufacturer: Siemens
INSTA-T. 16QMM,10MM, BLUE

Availability On Request

POA

This product has been superseded by

8WH12010AK01

Please check compatibility before purchasing.

  • Model: INSTA-T. 16QMM,10MM, BLUE
  • Discontinued: 01/08/21
  • Successor: 8WH1201-0AK01


Product

Manufacturer Material ID -
8WH1001-0AK01
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Length -
42.5 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
12.2 Millimetre
Height at lowest possible mounting height -
47 Millimetre
Material insulation body -
Other
Connection position -
Above
Closing plate required -
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
4 Square millimetre
Connectable conductor cross section multi-wired -
4 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Inflammability class of insulation material acc. with UL94 -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
101 Ampere
Rated voltage -
600 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH12010AK01

Please check compatibility before purchasing.
