8WH10010AM00

INSTA-T. 35QMM,12MM, GRAY

Manufacturer's No: 8WH1001-0AM00     Manufacturer: Siemens
INSTA-T. 35QMM,12MM, GRAY

Availability On Request

POA

This product has been superseded by

8WH12010AM00

Please check compatibility before purchasing.

  • Model: INSTA-T 35QMM
  • Diameter: 12mm
  • Color: Gray
  • Discontinued: 01/08/21
  • Successor Model: 8WH1201-0AM00


Product

Manufacturer Material ID -
8WH1001-0AM00
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

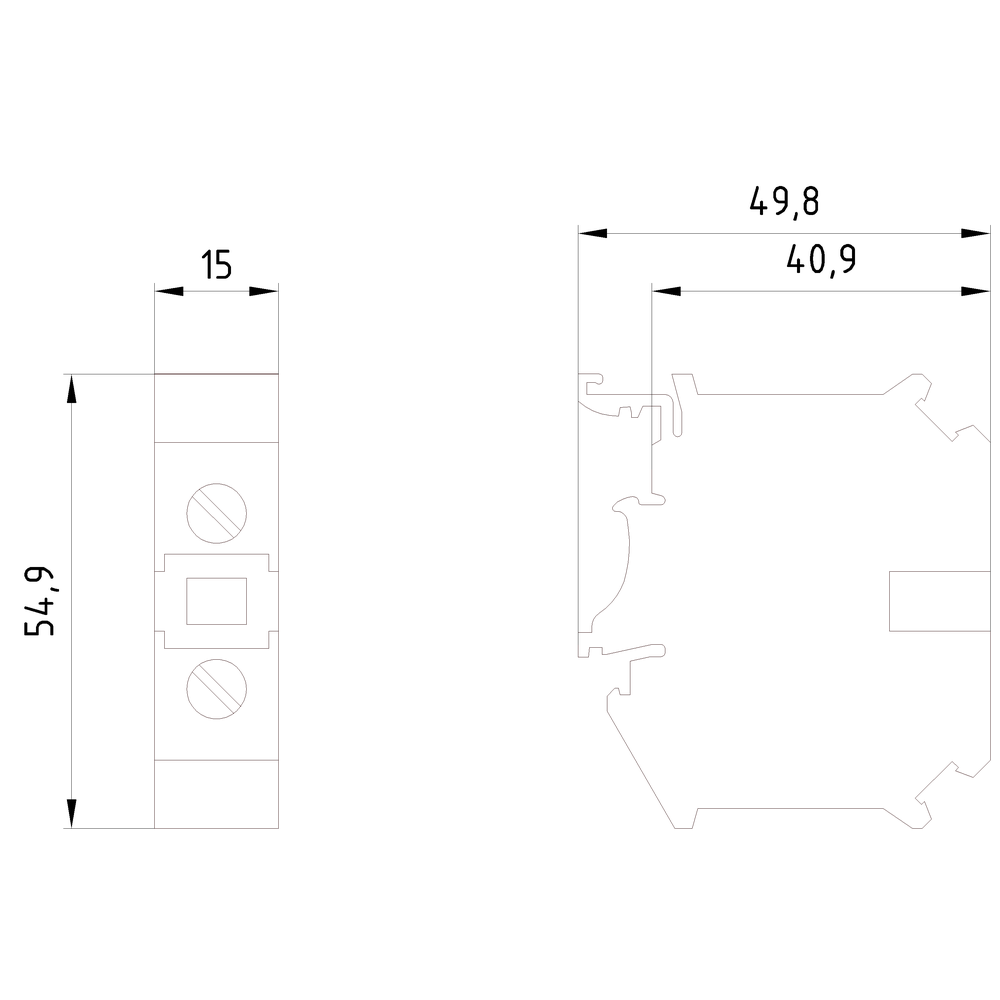

Technical Specification

Length -
55 Millimetre
Operation temperature -
-25 Degrees celsius
Width/grid dimension -
15.2 Millimetre
Height at lowest possible mounting height -
51 Millimetre
Material insulation body -
Other
Connection position -
Above
Closing plate required -
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.799999999 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
10 Square millimetre
Connectable conductor cross section multi-wired -
10 Square millimetre
Connectable conductor cross section solid-core -
10 Square millimetre
Inflammability class of insulation material acc. with UL94 -
Other
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
-60 Degrees celsius
Rated current In -
125 Ampere
Rated voltage -
600 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH12010AM00

Please check compatibility before purchasing.
