8WH10010BM01

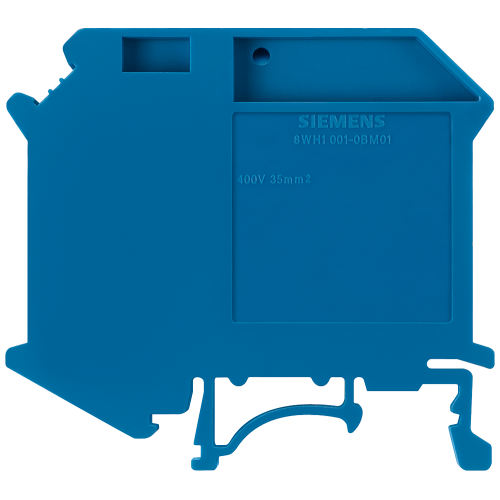

ISOLATING TERMINAL, 35QMM,BLUE

Manufacturer's No: 8WH1001-0BM01     Manufacturer: Siemens
ISOLATING TERMINAL, 35QMM,BLUE

Availability On Request

POA

This product has been superseded by

8WH12010BM01

Please check compatibility before purchasing.

  • Isolating terminal
  • Size: 35 mm²
  • Color: Blue
  • Discontinued since: 01/08/21
  • Successor: 8WH1201-0BM01


Product

Manufacturer Material ID -
8WH1001-0BM01
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
GR
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121410

Technical Specification

Length -
58.5 Millimetre
Width/grid dimension -
16 Millimetre
Height at lowest possible mounting height -
51 Millimetre
Material insulation body -
Other
Colour -
Blue
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
1.5 Square millimetre
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Inflammability class of insulation material acc. with UL94 -
V2
Mounting method -
Other
Number of clamp positions -
2
Rated current In -
110 Ampere
Rated voltage -
400 Volt
Suitable for N-busbar -
3x10 mm
Type of electric connection -
Screw connection

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

8WH12010BM01

Please check compatibility before purchasing.
