50113200

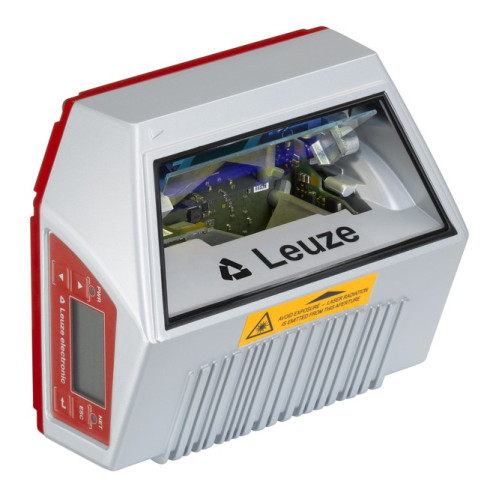

The Stationary bar code reader from . Scanning rate, typical: 1.000 scans/s; Reading distance: 200 ... 650 mm; Reading method: Osc

Manufacturer's No: BCL 548i ON 100 H     Manufacturer: Leuze
The Stationary bar code reader from . Scanning rate, typical: 1.000 scans/s; Reading distance: 200 ... 650 mm; Reading method: Oscillating-mirror scanner; Light beam exit: Zero position at side at a

Availability Back Order

£6,456.00
  • Functions: AutoConfig, Alignment mode, AutoControl, AutoReflAct, Code fragment technology, Heating, Reference code comparison
  • Scanning Rate: 1,000 scans/s
  • Reading Distance: 200-650 mm
  • Reading Method: Oscillating-mirror scanner
  • Light Beam Exit: Zero position at side at angle < 90°
  • Supply Voltage: 24 V DC, -20% to +20%
  • Selectable Inputs/Outputs: 4
  • Interface: PROFINET, USB
  • Connection: USB
  • Dimensions: 173 mm x 84 mm x 147 mm

Read more

  • Display: LED, Monochromatic graphical display (128x64 pixel) with background lighting
  • Operational Controls: Button(s), Via service interface
  • Ambient Temperature (Operation): -35 to 40 °C
  • Certifications: c UL US

Accessories



Product

Manufacturer Material ID -
BCL 548i ON 100 H
Net Weight -
2.09kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
UNSPSC -
43211701

Technical Specification

Number of semiconductor outputs with signalling function -
-
Number of safety fields -
-
Number of protected semiconductor outputs -
-
Type of interface for safety communication -
UN
Type of switching output of the OSSD -
UN
Type of electric connection -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Detection power for test bodies -
- Millimetre
Max. output current at protected output -
- Milliampere
Time of reaction -
- Millisecond
Transmission range of the measuring range -
- Metre
Transmission range of the safety field -
- Metre
Transmission range of the alert field -
- Metre
Scan angle -
- Degrees
Switching voltage of OSSD at state "high" -
- Volt
Type of safety acc. IEC 61496-1 -
UN
Thumbnail of product picture -
Ambient temperature -
-35 Degrees celsius
Height of sensor -
84 Millimetre
Laser protection class -
Class 2
Length of sensor -
147 Millimetre
Operation agent-safety class -
Safety class 3
Scanning interval -
10 Hertz
Voltage type -
DC
Wavelength of the sensor -
650 Nanometre
Width sensor -
173 Millimetre
With configurable message output -
Leuze

Availability Back Order

£6,456.00
