50134438

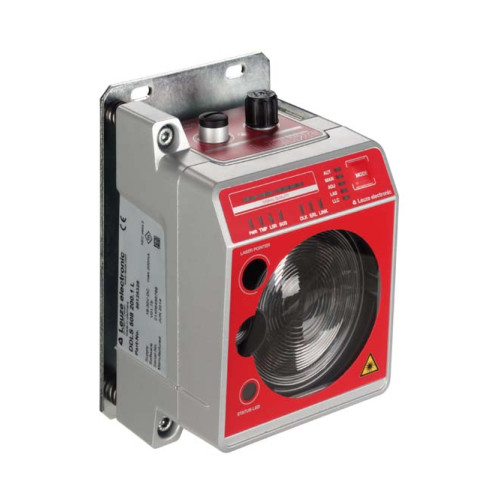

The Optical data transmission from . Pre-mounted: Mounting plate; Working range: 100 ... 200.000 mm; Usable opening angle, transmi

Manufacturer's No: DDLS 548i 200.4 L H     Manufacturer: Leuze
The Optical data transmission from . Pre-mounted: Mounting plate; Working range: 100 ... 200.000 mm; Usable opening angle, transmitter: 1 °; Supply voltage: 18 ... 30 V, DC; Interface: PROFINET; Con

Availability Back Order

£3,130.00
  • Special version with operation of parallel light axes, heating, integrated laser alignment aid
  • Remote diagnosis capability via web server
  • Working range: 100 mm to 200,000 mm
  • Transmission frequency: F4
  • Usable opening angle of transmitter: 1°
  • Supply voltage: 18 V to 30 V DC
  • Interface: PROFINET with transmission speed of 100 Mbit/s
  • Connection type: M12 connector
  • Dimensions: 100 mm x 156 mm x 99.5 mm
  • Ambient temperature during operation: -35°C to 50°C

Read more

  • Degree of protection: IP 65

Accessories

Others



Product

Manufacturer Material ID -
DDLS 548i 200.4 L H
Net Weight -
1.93kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
43211701

Technical Specification

Number of ports 10 Mbps of ST -
-
Number of ports 100 Mbps SC -
-
Number of ports 10 Mbps of SC -
-
Number of ports 10 Mbps RJ45 -
-
Number of ports 10/100 Mbps RJ45 -
-
Number of ports 1000 Mbps SC (SX) -
-
Number of ports 1000 Mbps SC (LX) -
-
Number of ports 10 Gbit SC (SR) -
-
Number of ports 10/100/1000 Mbps RJ45 -
-
Number of other ports -
-
Galvanic separation -
None
Connection type primary side -
Other
Connection type secondary side -
Other
Nominal electricity consumption -
0 Milliampere
Service primary side -
Other
Service secondary side -
Other
Thumbnail of product picture -
Bus type -
Other
Depth -
99.5 Millimetre
Height -
156 Millimetre
Suitable for wall mounting -
Width -
100 Millimetre
Leuze

Availability Back Order

£3,130.00
