3054092

Photoelectric Sensor, Laser Measuring System

Manufacturer's No: LG10A65NI     Manufacturer: Turck Banner
Photoelectric Sensor, Laser Measuring System

Availability On Request

POA
  • Photoelectric Sensor with Laser Measuring System
  • Operating Voltage: 12-30 VDC
  • Max. Range: 125 mm
  • Focal Distance: 180 mm
  • Cable Length: 2 m
  • Measuring Range: 75-125 mm
  • Analog Output: 4-20 mA
  • Indication of Signal Intensity
  • Alarm Output
  • Adjustable Operation Modes: Slow, Medium, Fast

Follow-up article



Product

Manufacturer Material ID -
LG10A65NI
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

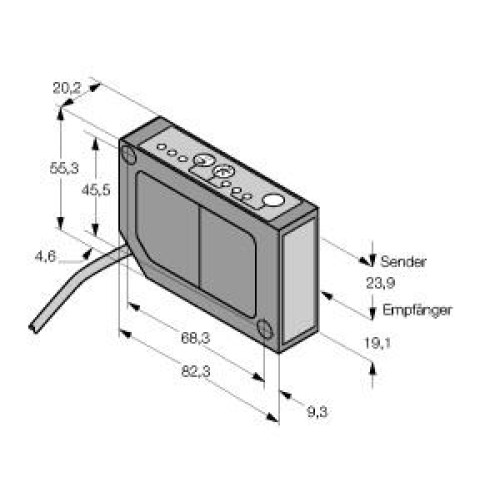

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
55.3 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
82.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Setting procedure -
Manual adjustment
Supply voltage -
12 Volt
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Width sensor -
20.2 Millimetre
Turck Banner

Availability On Request

POA
