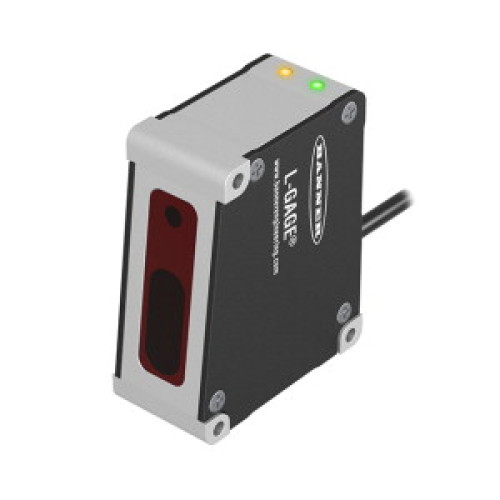

3011952

Photoelectric Sensor, Diffuse Mode Sensor, Laser Measuring System

Manufacturer's No: LH150IX485QP     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor, Laser Measuring System

Availability On Request

POA
  • Photoelectric Sensor, Diffuse Mode Sensor
  • Laser Measuring System
  • Operating voltage: 18-30 VDC
  • Max. range: 200 mm
  • Cable length: 0.15 m
  • Indication of signal intensity
  • Measuring range: 100-200 mm
  • Max. resolution: 10 µm
  • Laser beam at 150 mm distance: 225 µm
  • Thickness measurement up to 50 mm with second LH150 (adapter CSB3-M1281M1282-LH required)

Read more

  • Analog output: 4-20 mA
  • RS485 serial communication
  • Adjustable via enclosed software
  • USB converter INTUSB458-LH required
  • 8-pin Y-piece CSB-M1280M1280-LH required

Follow-up article



Product

Manufacturer Material ID -
LH150IX485QP
Net Weight -
0.73kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

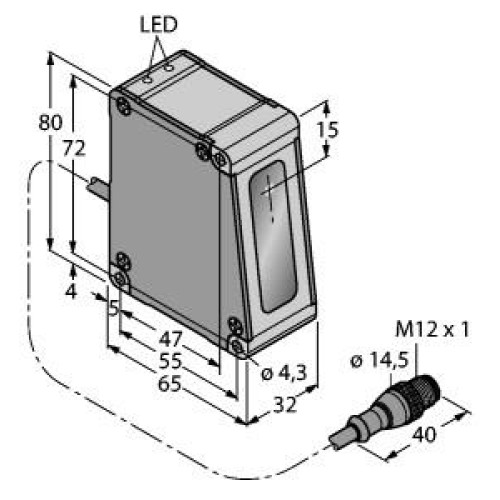

Height of sensor -
80 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
65 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Glass
Setting procedure -
Other
Standard for interfaces -
RS-485
Supply voltage -
18 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switching output -
Other
Width sensor -
32 Millimetre
