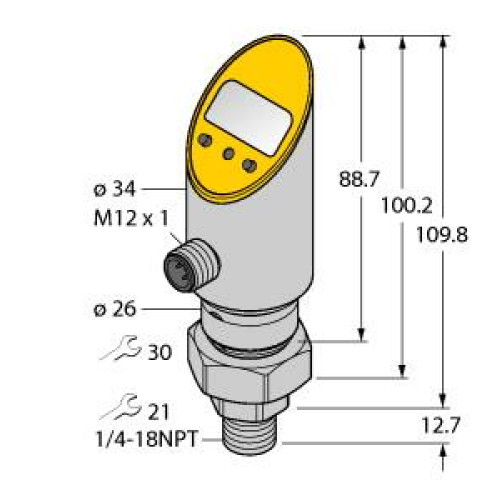

Pressure Transmitter (Rotatable), 2 PNP/NPN Transistor Switching Outputs

Manufacturer's No: PS400R-503-2UPN8X-H1141     Manufacturer: Turck Banner
Pressure Transmitter (Rotatable), 2 PNP/NPN Transistor Switching Outputs

Availability On Request

£578.95
  • Pressure Transmitter with rotatable housing
  • 2 PNP/NPN transistor switching outputs
  • Operating voltage: 18-30 VDC
  • Rotatable housing after plugging process connection
  • Reading of adjusted values without tool
  • Recessed pushbutton and keylock for secure programming
  • Permanent indication of pressure in bar, psi, kPa, MPa, misc
  • Peak pressure memory
  • Pressure range: 0-400 bar rel.

Follow-up article



Product

Manufacturer Material ID -
PS400R-503-2UPN8X-H1141
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
90262020000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Bursting pressure -
700 Pressure
Degree of protection (IP rating) -
IP67
End setting -
400000 Hecto Pascal
End value measuring range pressure -
40000000 Pascal
Engaging pressure -
0 Pressure
Initial setting -
0 Hecto Pascal
Initial value measuring range pressure -
0 Pascal
Max. test pressure -
700 Pressure
Medium temperature -
-40 Degrees celsius
Rated voltage Ue at DC -
18 Volt
Switch off pressure -
400 Pressure
Type of electric connection -
Other
Turck Banner

Availability On Request

£578.95
