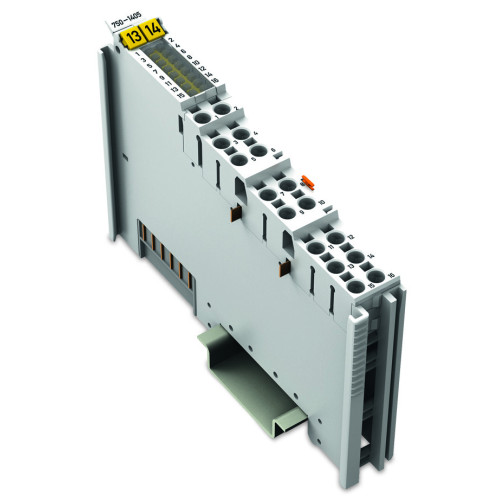

750-1405

16-channel digital input, 24 VDC, 3 ms, light gray

Manufacturer's No: 750-1405     Manufacturer: WAGO
16-channel digital input, 24 VDC, 3 ms, light gray

Availability In Stock

£114.95
  • 16-channel digital input
  • Operating voltage: 24 VDC
  • Response time: 3 ms

Accessories

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.82
Back Order

Group marker carrier, transparent

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 750-103
Price £0.73
Back Order

Shield clamping saddle, 12.4 mm wide, 3 ... 8 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 790-208
Price £6.31
Back Order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £3.96
Back Order

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £3.96
Back Order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £3.96
Back Order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £3.96
Back Order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £3.96
Back Order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £3.96
Back Order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £3.96
Back Order

Group marker carrier, transparent

Product Code - 750-107
Price £0.77
Back Order


Product

Manufacturer Material ID -
750-1405
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Minimum Order Quantity -
None
RoHs Compliance -
YES
UNSPSC -
32151705

Technical Specification

-
Wago
Output current -
- Ampere
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
3 Millisecond
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Degree of protection (IP rating) -
IP20
Depth -
69 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
100 Millimetre
Input current at signal 1 -
2.3 Milliampere
Number of digital inputs -
16
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
-3 Volt
Rail mounting possible -
Supply voltage DC -
24 Volt
System accessory -
Time delay at signal change -
3 Millisecond
Type of digital output -
Other
Type of electric connection -
Spring clamp connection
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Width -
12 Millimetre
