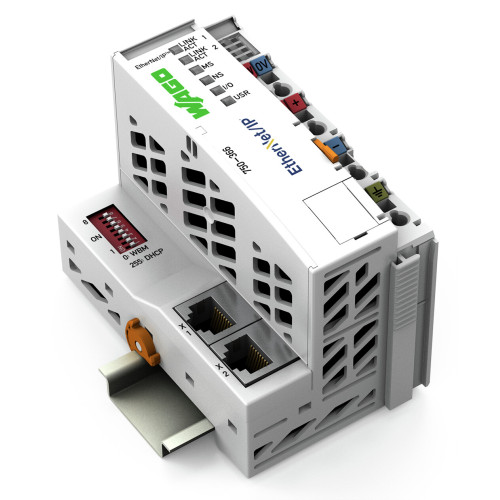

750-366

Fieldbus Coupler EtherNet/IP, 4th generation, DLR

Manufacturer's No: 750-366     Manufacturer: WAGO
Fieldbus Coupler EtherNet/IP, 4th generation, DLR

Availability Available to order

POA
  • Fieldbus Coupler for EtherNet/IP
  • 4th generation design
  • Supports Device Level Ring (DLR) functionality

Accessories

Mini-WSB marking card, as card, not stretchable, white

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501
Price £2.87
Available to order

Shield clamping saddle, 12.4 mm wide, 3 ... 8 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 790-208
Price £6.42
Available to order

Shield clamping saddle, 30 mm wide, 6 ... 20 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 790-220
Price £10.68
Available to order

Mini-WSB marking card, as card, not stretchable, gray

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-007
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, violet

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-024
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, blue

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-006
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, orange

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-012
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, red

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-005
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, green

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-023
Price £4.03
Available to order

Mini-WSB marking card, as card, not stretchable, yellow

Once added to the cart, you can split this pack for a charge of £16.50

Product Code - 248-501/000-002
Price £4.03
Available to order


Product

Manufacturer Material ID -
750-366
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
UNSPSC -
39121410

Technical Specification

Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20
Depth -
71.9 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
100 Millimetre
Input voltage at DC -
24 Volt
Max. input current DC -
0.48 Ampere
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of slots -
1
Rail mounting possible -
Supporting protocol for EtherNet/IP -
Supporting protocol for other bus systems -
System accessory -
Type of electric connection -
Spring clamp connection
Type of voltage (input voltage) -
DC
Width -
61.5 Millimetre
With integrated power supply -
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -
With potential separation -

Availability Available to order

POA
