SITRANS Clamp-on Flow Meter

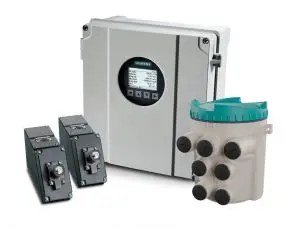

SITRANS FS230
The SITRANS FS230 is an ultrasonic clamp-on flowsystem. The SITRANS FST030 transmitter with the proven-in-use FSS200 sensors is ideal for challenging applications and the use in Ex areas. The SITRANS FS230 system is compatible with pipe diameters from DN10 up to DN500. For applications in hazardous areas, the external electronics module SITRANS FS DSL is used. It is installed close to the sensors and digitises the measured signal at the earliest opportunity to transfer it to the FST030 transmitter with optimal EMC protection.
SITRANS FSS200 clamp-on ultrasonic sensors are available in three different versions: WideBeam® (High-Precision), Universal and High-Temperature. The FSS200 sensors feature low maintenance and high precision – even for applications with high levels of aeration or suspended solids.
Benefits
- Clamp-on flow system for the measurement of liquids, oil or gas
- Designed for use with up to 4 paths
- Designed for use in Ex areas, safe distance to transmitter of up to 150 m
- High accuracy, repeatability and zero flow detection
- Designed according to NAMUR requirements and Industry 4.0 with various diagnostic functions
Detail
ENCLOSURE | Wallmount enclosure: die-cast aluminium, painted, wall or standpipe mounting options, IP65/NEMA 4X |
|---|---|
SENSORS | Internal DSL for 1-2-path variant; external SITRANS FS DSL for up to 4 path use; combinable with all FSS200 clamp-on sensor types |
PROCESS VALUES (PRIMARY) | Volume flow, Mass flow, Standard volume flow, Flow velocity, Speed of sound, Liquident detection, Totaliser 1, 2 and 3 |
COMMUNICATION | HART or Modbus RTU; compatible with SIMATIC PDM; USB service port |
DATA LOGGER | 4GB SD card, expandable up to 32GB |
I/O OPTIONS | 3 in/outputs: channel 2, 3 and 4: 4-20 mA active/passive, status output, relay |
DISPLAY | Full-graphic display, 240 x 160 pixel, backlit |
POWER SUPPLY | 24 V DC / 90 – 240 VAC |
| APPROVALS | UL, cUL, CE, ATEX, FM and more |
MEASURING ACCURACY | ≥ 0,3% |
FLOW RANGE | Liquids ±12 m/s (±40 ft/s), gas, ±40 m/s and more; bidirection |
PIPE DIAMETERS | 12, 7 mm to 10 m (0.5″ to 394″) |
SITRANS FS220
Benefits
- High accuracy and repeatability – accuracy of 1% of flow rate and repeatability of 0.25% according to ISO 11631
- Exceptional zero stability – minimal need to set a zero point
- User-friendly – fully graphical display with simple menu navigation, multiple setup wizards and the option to display up to 6 customisable parameters on the same screen

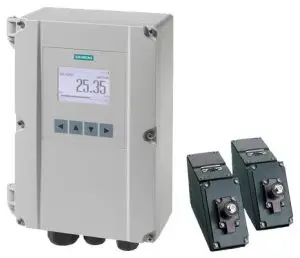

Detail - SITRANS FST020 wall-mount transmitter
CHANNELS | Single channel |
|---|---|
| COMMUNICATION | Modbus RTU, compatible with SIMATIC PDM |
ENCLOSURE RATING | IP65 (NEMA 4X) |
DISPLAY | 240 x 160, fully graphical |
POWER SUPPLY | 100-240 V AC 15 VA max., 11.5-28.5 V DC 7.5W max. |
INPUTS | 2x digital inputs for totalizer start/stop and reset |
OUTPUTS | 1x 4 -20 mA, 1x relay, 1x pulse/frequency |
ACCURACY | 1% for velocities ≥ 0.3 m/s (1 ft/s) |
| FLOW RANGE | ±12 m/s (±40 ft/s), bidirectional |
PIPE SIZE RANGE | 12.7 mm to 10 m (0.5″ to 394″) |
APPROVALS | UL, ULc, CE |
