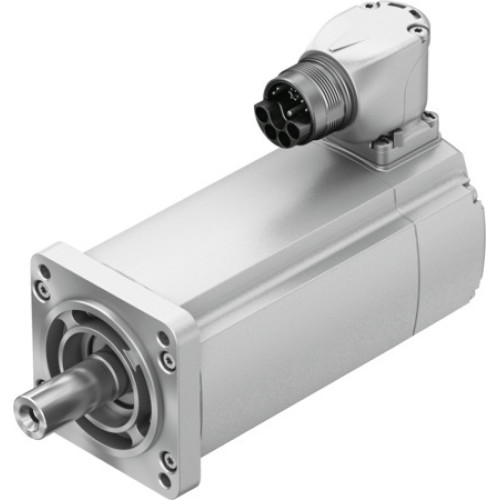

EMMT-AS-60-M-LS-RSB Servo motor

Manufacturer's No: EMMT-AS-60-M-LS-RSB     Manufacturer: Festo
EMMT-AS-60-M-LS-RSB Servo motor

Availability Back Order

£953.69
  • Servo motor model: EMMT-AS-60-M-LS-RSB
  • Ambient temperature range: -15°C to 40°C (up to 80°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 meters (derating of -1.0% per 100 meters above 1000 meters)
  • Storage temperature range: -20°C to 70°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Max. winding temperature: 155°C
  • Temperature monitoring: Digital transmission via EnDat® 2.2
  • Motor types: IM B5, IM V1, IM V3
  • Degree of protection: IP40 for motor shaft, IP65 for motor shaft with rotary shaft seal, IP67 for motor housing

Read more

  • Balance quality: G 2.5
  • Detent torque: <1.0% of peak torque
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Hybrid plug, M23x1 connector system, 15 connections/cores
  • Pollution degree: 2
  • Materials: RoHS-compliant, corrosion resistance class CRC: 0
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Approvals: RCM trademark, c UL us - Recognized (OL), CE mark, UKCA marking
  • Certificate issuing authority: UL E342973
  • Nominal operating voltage DC: 325 V
  • Number of pole pairs: 5
  • Torque specifications: Standstill torque: 1.15 Nm, Nominal torque: 1 Nm, Peak torque: 3.4 Nm
  • Speed specifications: Nominal rotary speed: 3000 RPM, Max. rotational speed: 6800 RPM, Max. mechanical speed: 16000 RPM
  • Power rating: 310 W
  • Current specifications: Continuous stall current: 2.5 A, Nominal motor current: 2.2 A, Peak current: 11 A
  • Thermal specifications: Thermal resistance: 1.3 K/W, Thermal time constant: 42 minutes
  • Mechanical specifications: Product weight: 1850 g, Permissible axial shaft load: 70 N, Permissible radial shaft load: 350 N
  • Rotor position sensor: Absolute single-turn encoder, ECI 1118, EnDat® 22 interface, Inductive measuring principle
  • Brake specifications: Holding torque: 2.5 Nm, Operating voltage DC: 24 V, Brake current consumption: 0.46 A, Power consumption: 11 W, Brake coil resistance: 52.4 ohms, Brake separation time: 35 ms, Brake closing time: 10 ms, Max. brake no-load speed: 10000 RPM, Max. friction per braking process: 5600 J, Total brake friction: 615 KJ, Switching cycles holding brake: 10 million idle actuations
  • Mean time to failure (MTTF) for rotor position sensor: 190 years

Accessories



Product

Manufacturer Material ID -
EMMT-AS-60-M-LS-RSB
Net Weight -
2.02kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
BG
UNSPSC -
26101115
