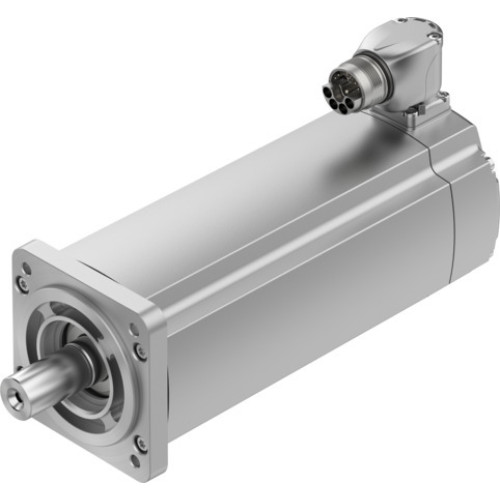

EMMT-AS-80-L-HS-RSB Servo motor

Manufacturer's No: EMMT-AS-80-L-HS-RSB     Manufacturer: Festo
EMMT-AS-80-L-HS-RSB Servo motor

Availability Back Order

£1,211.25
  • Servo motor model: EMMT-AS-80-L-HS-RSB
  • Max. winding temperature: 155°C
  • Max. installation height: 4000m with derating of -1.0% per 100m above 1000m
  • Temperature class: F
  • Degree of protection: IP40 for motor shaft, IP65 for motor shaft with rotary shaft seal, IP67 for motor housing
  • Bearing lifetime under nominal conditions: 20000 hours
  • Electrical connection: Hybrid plug, M23x1 connector system, 15 connections/cores
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Certifications: RCM trademark, c UL us - Recognized (OL), CE mark for EU EMC Directive, EU Low Voltage Directive, EU RoHS Directive, UKCA marking for UK instructions and regulations

Read more

  • Nominal operating voltage DC: 680V
  • Standstill torque: 3.5Nm, Nominal torque: 2.9Nm, Peak torque: 9.9Nm
  • Nominal power rating: 910W
  • Continuous stall current: 4.3A, Nominal motor current: 3.5A, Peak current: 17.5A
  • Rotor position sensor: Absolute single-turn encoder, EnDat® 22 interface
  • Brake holding torque: 7Nm, Operating voltage DC for brake: 24V
  • Energy efficiency: ENEFF (CN) / Class 2

Accessories



Product

Manufacturer Material ID -
EMMT-AS-80-L-HS-RSB
Net Weight -
4.80kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
BG
UNSPSC -
26101115
