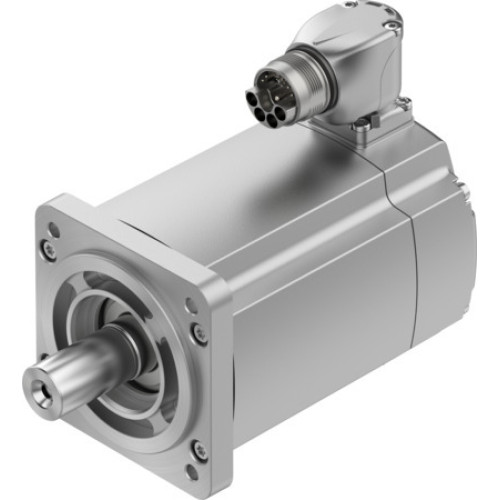

EMMT-AS-80-S-HS-RS Servo motor

Manufacturer's No: EMMT-AS-80-S-HS-RS     Manufacturer: Festo
EMMT-AS-80-S-HS-RS Servo motor

Availability Back Order

£786.63
  • Servo motor model: EMMT-AS-80-S-HS-RS
  • Ambient temperature: -15°C to 40°C (up to 80°C with derating of -1.5% per degree Celsius)
  • Max. installation height: 4000 m (derating of -1.0% per 100 m above 1000 m)
  • Storage temperature: -20°C to 70°C
  • Relative air humidity: 0% to 90%
  • Conforms to standards: IEC 60034, EN 60034-1
  • Max. winding temperature: 155°C
  • Rating class: S1
  • Temperature monitoring: Digital via EnDat® 2.2
  • Motor types: IM B5, IM V1, IM V3

Read more

  • Degree of protection: IP40 (motor shaft), IP65 (motor shaft with rotary shaft seal), IP67 (motor housing)
  • Balance quality: G 2.5
  • Detent torque: <1.0% of peak torque
  • Bearing lifetime: 20000 hours
  • Electrical connection: Hybrid plug, M23x1 connector, 15 connections/cores
  • Pollution degree: 2
  • Materials: RoHS-compliant, CRC 0 corrosion resistance
  • Vibration resistance: Severity level 2
  • Shock resistance: Severity level 2
  • Approvals: RCM, c UL us - Recognized (OL), CE mark, UKCA marking
  • Nominal operating voltage: 680 V
  • Number of pole pairs: 5
  • Torque: Standstill 1.46 NM, Nominal 1.3 NM, Peak 2.8 NM
  • Speed: Nominal 3000 RPM, Max. 8950 RPM, Mechanical 14000 RPM
  • Power rating: 408 W
  • Current: Continuous stall 2 A, Nominal 1.76 A, Peak 5.4 A
  • Constants: Motor 0.74 NMA, Standstill torque 0.89 NMA, Voltage phase-to-phase 53.6 YUR
  • Resistance: Phase-phase winding 12.4 OHM
  • Inductance: Phase-phase winding 39.8 C14, Longitudinal 25 C14, Cross 29.8 C14
  • Time constants: Electric 4.8 MS, Thermal 42 MIN
  • Thermal resistance: 0.95 K/W
  • Measuring flange: 250 x 250 x 15 mm, steel
  • Inertia: Total mass moment of output 0.597 KGC
  • Weight: 2020 g
  • Shaft loads: Axial 120 N, Radial 620 N
  • Rotor position sensor: Absolute single-turn encoder (ECI 1118)
  • Encoder interface: EnDat® 22
  • Sensor details: Inductive, 262144 position values per revolution, 18 BIT resolution
  • System accuracy of angle measurement: -120 to 120 ARS
  • Mean time to failure (MTTF): 190 years for rotor position sensor

Accessories



Product

Manufacturer Material ID -
EMMT-AS-80-S-HS-RS
Net Weight -
2.68kg

Additional Product Information

Commodity Code -
85015100
Country of Origin -
BG
UNSPSC -
26101115
