570808

Safety gate system includes safe interlock with safe guard locking in accordance with EN 60947-­5-­3

Manufacturer's No: PSEN sg2c-3LPC unit     Manufacturer: Pilz
Safety gate system includes safe interlock with safe guard locking in accordance with EN 60947-­5-­3

Availability On Request

£716.06

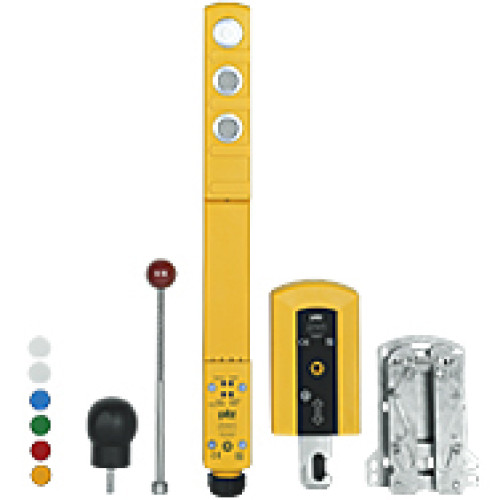

  • Safety gate system with safe interlock and safe guard locking
  • Compliant with EN 60947-5-3 for applications up to SIL CL 3 and PL e
  • Consists of 3 elements:
    1. Illuminated pushbutton
    2. Pushbutton
    3. Blind cover
  • Scope of supply includes:
    • Sensing device with pushbuttons, coloured caps, and escape release bar
    • Actuator (bolt) for right or left-hinged doors

Accessories



Product

Manufacturer Material ID -
PSEN sg2c-3LPC unit
Net Weight -
2.57kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
43233603

Technical Specification

Housing material -
Plastic
Suitable for safety functions -
With status indication -
Type of switching contact -
Other
Type of interface for safety communication -
None
Type of electric connection -
Cable entry metrical
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Other
Number of safety auxiliary contacts -
2
Interface type -
None
Rated control supply voltage magnet drive at DC -
24 Volt
With escape unlocking -
Clamping force -
2000 Newton
Number of contacts as normally open contact -
5
Type of guard locking -
Bistable
Ambient temperature during operating -
-20 Degrees celsius
Degree of protection (IP rating) -
IP54
Height of sensor -
465 Millimetre
Length of sensor -
108 Millimetre
Number of contacts as normally closed contact -
2
Width sensor -
200 Millimetre
Pilz

Availability On Request

£716.06
