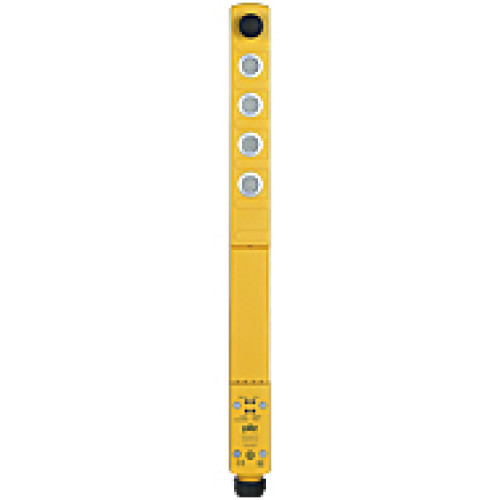

Safety gate system 2. generation safe interlock with safe guard locking

Manufacturer's No: PSEN sg2c-5LPLLS switch     Manufacturer: Pilz
Safety gate system 2. generation safe interlock with safe guard locking

Availability On Request

£706.96
  • Safety gate system 2nd generation with safe interlock and guard locking
  • Compliant with EN 60947-5-3 for applications up to SILCL 3 and PL e
  • Consists of 5 elements:
    • Illuminated pushbutton for safety gate activation
    • Pushbutton for access and release of safety gate
    • 2 illuminated pushbuttons
    • Section stop pushbutton
  • Scope of supply includes sensing device with pushbuttons (spare)

Accessories



Product

Manufacturer Material ID -
PSEN sg2c-5LPLLS switch
Net Weight -
1.18kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
UNSPSC -
43233603

Technical Specification

Housing material -
Plastic
Suitable for safety functions -
With status indication -
Type of switching contact -
Other
Type of interface for safety communication -
None
Type of electric connection -
Cable entry metrical
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Other
Number of safety auxiliary contacts -
2
Interface type -
None
Rated control supply voltage magnet drive at DC -
24 Volt
With escape unlocking -
Clamping force -
2000 Newton
Number of contacts as normally open contact -
5
Type of guard locking -
Bistable
Ambient temperature during operating -
-20 Degrees celsius
Degree of protection (IP rating) -
IP54
Height of sensor -
555 Millimetre
Length of sensor -
74.5 Millimetre
Number of contacts as normally closed contact -
2
Width sensor -
46.5 Millimetre
Pilz

Availability On Request

£706.96
