6GK52061BC002AF2

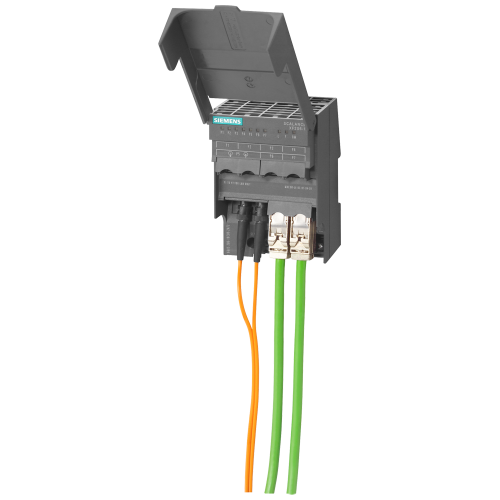

SCALANCE XF206-1, managed Layer 2 flat switch, 6x RJ45, 1x multimode ST/BFOC

Manufacturer's No: 6GK5206-1BC00-2AF2     Manufacturer: Siemens
SCALANCE XF206-1, managed Layer 2 flat switch, 6x RJ45, 1x multimode ST/BFOC

View 3D

Availability Back Order

£903.00
  • SCALANCE XF206-1 Managed IE switch
  • 6x 10/100 Mbit/s RJ45 ports
  • 1x 100 Mbit/s FO port
  • Error signaling contact with set pushbutton
  • Redundant power supply
  • PROFINET IO device
  • Network management capabilities
  • Integrated Redundancy Manager
  • Includes electronic manual on CD-ROM
  • C-PLUG optional

Accessories

Product video


Product

Manufacturer Material ID -
6GK5206-1BC00-2AF2
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: 5D002A2H / ECCN: 5D002ENCA3
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Number of ports 100 Mbps SC -
-
Number of ports 100/1000 Mbps Mini GBIC -
-
Power over Ethernet -
UN
Number of ports PoE -
-
Max. PoE power -
- Watt
Number of ports 1000 Mbps POF -
-
Number of max. stackable switches -
0
Degree of protection (IP) -
IP20
Mounting method -
DIN rail (top hat rail)
Number of ports 1000 Mbps RJ45 -
0
Ethernet -
Number of ports 10/100 Mbps RJ45 -
6
Number of ports 1000 Mbps SC (SX) -
0
Number of ports 1000 Mbps SC (LX) -
0
Number of module slots -
0
Number of maximum stackable switches -
0
Number of ports 10/100 Mbps M12 -
0
Number of ports 10/100/1000 Mbps RJ45 -
0
Number of ports 1000 Mbps GBIC -
0
Number of ports 1000 Mbps Mini GBIC -
0
Number of combination-ports RJ45/Mini GBIC -
0
Layer 2 -
Number of other ports -
1
Number of ports 10 Gbps Mini GBIC -
0
Number of ports 100 Mbps POF -
0
Number of ports 10 Gbps RJ45 -
0
Number of ports 40 Gbps Mini GBIC -
0
Number of ports 100 Gbps Mini GBIC -
0
Degree of protection (IP rating) -
IP20
Depth -
73 Millimetre
Height -
125 Millimetre
Manageable -
Number of ports 100 Mbps ST -
1
Width -
75 Millimetre

Availability Back Order

£903.00
