6GT28212AC32

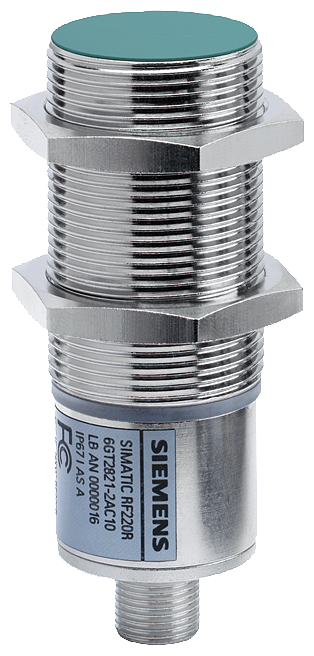

SIMATIC RF200 reader RF220R, IO-Link, IP67, -25 to +70 °C

Manufacturer's No: 6GT2821-2AC32     Manufacturer: Siemens
SIMATIC RF200 reader RF220R, IO-Link, IP67, -25 to +70 °C

View 3D

Availability Back Order

£472.82

This product has been superseded by

6GT28212BC32

Please check compatibility before purchasing.

  • SIMATIC RF200 reader model RF220R
  • IO-Link interface with 8 byte IO
  • IP67 rated for protection
  • Operating temperature range: -25 to +70°C
  • Compact size: M30x83 mm
  • Integrated antenna for improved performance
  • Data transmission speed: 38.4 Kbit/s

Accessories

Follow-up article



Product

Manufacturer Material ID -
6GT2821-2AC32
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Width -
- Millimetre
Depth -
- Millimetre
Number of digital inputs -
-
Number of digital outputs -
-
Material housing -
Brass
Degree of protection (IP) -
IP67
Radio protocol -
ISO 18000-3
Type of electric connection -
Screw connection
Max. transmission rate, reading -
26500 kiloBit/second
Max. transmission rate, writing -
26500 kiloBit/second
Degree of protection (IP rating) -
IP67
Diameter -
30 Millimetre
Frequency -
13.56 Megahertz
Height -
83 Millimetre
Housing material -
Brass
Max. transmission range -
35 Millimetre
Type of voltage (input voltage) -
DC

Availability Back Order

£472.82
Sign in or Register for customer prices.

This product has been superseded by

6GT28212BC32

Please check compatibility before purchasing.
