50145997

Application: Single compartment depth; Special version: Heating; Software functions: Compartment fine positioning; Working range:

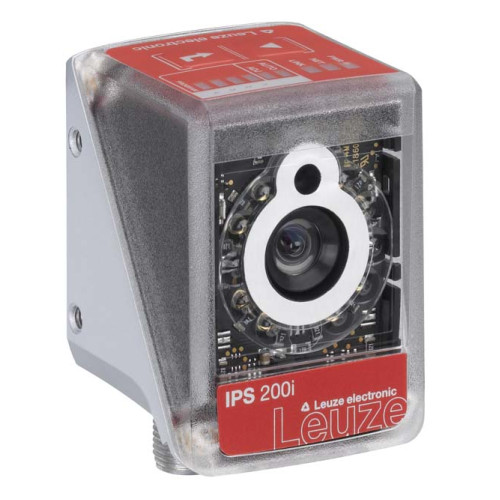

Manufacturer's No: IPS 258i FIX-M3-102-I3-H     Manufacturer: Leuze
Application: Single compartment depth; Special version: Heating; Software functions: Compartment fine positioning; Working range: 100 ... 600 mm; Light source: LED, Infrared; Camera resolution, horiz

Availability On Request

£2,399.00
  • Application: Single compartment depth
  • Special version: Heating
  • Working range: 100
  • 600 mm
  • Light source: LED, Infrared
  • Camera resolution: 1280 px (horizontal) x 960 px (vertical)
  • Marker size: 5
  • 20 mm
  • Supply voltage: 18
  • 30 V DC

Read more

  • Interface: EtherNet IP, Ethernet
  • Connection: M12 Connector
  • Dimensions: 43 mm x 61 mm x 44 mm
  • Configuration/parametization: Via web browser, Configuration codes, Teach-in
  • Ambient temperature (operation): -30°C to 45°C
  • Degree of protection: IP 65

Accessories

Others



Product

Manufacturer Material ID -
IPS 258i FIX-M3-102-I3-H
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-30 Degrees celsius
Height of sensor -
61 Millimetre
Length of sensor -
44 Millimetre
Number of semiconductor outputs with signalling function -
5
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
18 Volt
Type of electric connection -
Connector M12
Voltage type -
DC
Width sensor -
43 Millimetre
With configurable message output -
Leuze

Availability On Request

£2,399.00
