50142219

Application: Double compartment depth, Single compartment depth; Special version: Heating; Software functions: Compartment fine po

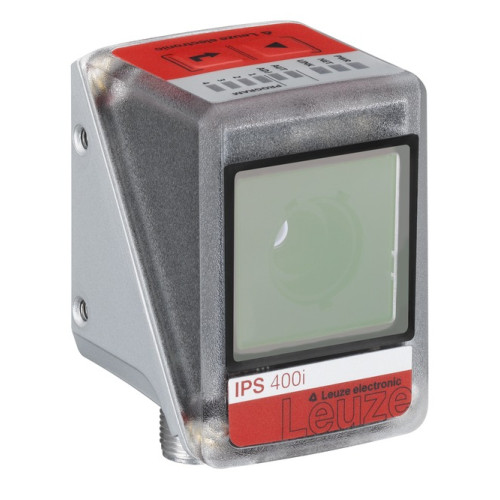

Manufacturer's No: IPS 448i FIX-F2-102-I3-G-H     Manufacturer: Leuze
Application: Double compartment depth, Single compartment depth; Special version: Heating; Software functions: Compartment fine positioning; Working range: 250 ... 1,900 mm; Light source: LED, Infrar

Availability On Request

£3,359.00
  • Application: Double compartment depth
  • Special version: Heating
  • Working range: 250 mm to 1,900 mm
  • Light source: LED, Infrared
  • Camera resolution: 1,280 px (horizontal) x 960 px (vertical)
  • Marker size: 13 mm to 15 mm
  • Supply voltage: 18 V to 30 V DC
  • Interface: Ethernet, PROFINET
  • Connection: Connector, M12
  • Dimensions: 43 mm x 61 mm x 44 mm

Read more

  • Configuration/parametization: Via web browser, Configuration codes, Teach-in
  • Ambient temperature, operation: -30°C to 45°C
  • Degree of protection: IP 65

Accessories

Others



Product

Manufacturer Material ID -
IPS 448i FIX-F2-102-I3-G-H
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-30 Degrees celsius
Height of sensor -
61 Millimetre
Length of sensor -
44 Millimetre
Number of semiconductor outputs with signalling function -
5
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
18 Volt
Type of electric connection -
Connector M12
Voltage type -
DC
Width sensor -
43 Millimetre
With configurable message output -
Leuze

Availability On Request

£3,359.00
