50142072

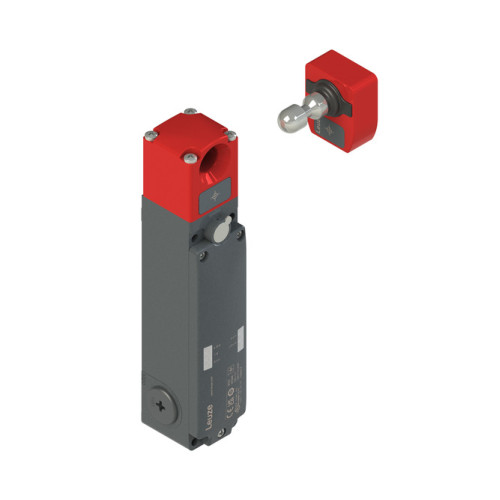

Series: L300; Functions: Locking device with guard interlocking in acc. with EN ISO 14119 (type 4); Activation mode of safety outp

Manufacturer's No: L300-M31M12B8Y2-MLM24-SCA     Manufacturer: Leuze
Series: L300; Functions: Locking device with guard interlocking in acc. with EN ISO 14119 (type 4); Activation mode of safety outputs: Safety outputs active if safety door is closed and locked; Opera

Availability On Request

£800.00
  • Series: L300
  • Functions: Locking device with guard interlocking in accordance with EN ISO 14119 (type 4)
  • Activation mode of safety outputs: Safety outputs active when safety door is closed and locked
  • Operating principle: Actuator locked when electromagnet is activated using open circuit current principle
  • Performance Level (PL): Up to and including e, EN ISO 13849-1
  • Encoding level: Low, EN ISO 14119
  • Type of wiring: Series connection, Single connection
  • Safety-related switching outputs type: OSSD
  • Connection: Connector, M12, 8-pin, Metal, Male, A-coded
  • Housing material: Metal

Read more

  • Max. locking force: 9,750 N
  • Operational controls: Standard
  • Degree of protection: IP 69K, IP 67
  • Certifications: c UL US, ECOLAB, TÜV Süd

Accessories

Others



Product

Manufacturer Material ID -
L300-M31M12B8Y2-MLM24-SCA
Net Weight -
1.20kg

Additional Product Information

Commodity Code -
85369095
Country of Origin -
IT
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature during operating -
-20 Degrees celsius
Clamping force -
9750 Newton
Coating housing -
Powder coated
Construction type housing -
Cuboid
Degree of protection (IP rating) -
Other
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Housing material -
Metal
Interface type -
None
Rated control supply voltage magnet drive at DC -
24 Volt
Suitable for safety functions -
Type of electric connection -
Connector M12
Type of guard locking -
Quiescent current principle
Type of interface for safety communication -
None
Type of switching contact -
Other
Leuze

Availability On Request

£800.00
