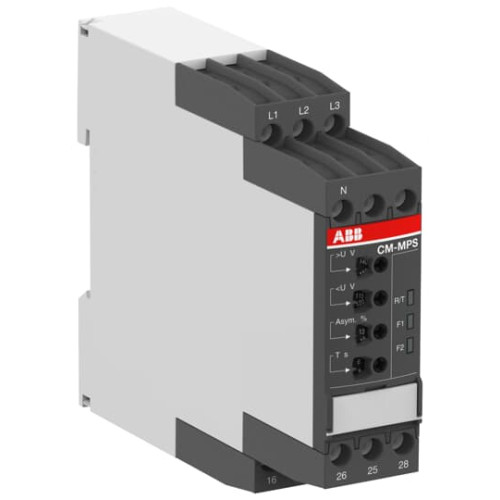

1SVR730884R3300

Phase Failure, Phase sequence, Phase Unbalance, Over & Under voltage relay 2c/o, 3x 300-500VAC input voltage

Manufacturer's No: CM-MPS.41S     Manufacturer: ABB
Phase Failure, Phase sequence, Phase Unbalance, Over & Under voltage relay 2c/o, 3x 300-500VAC input voltage

Availability Back Order

£231.97
  • Phase Failure, Phase sequence, Phase Unbalance, Over & Under voltage relay
  • CM-MPS.41S multifunctional relay from the CM three-phase monitors range
  • Input voltage: 3x 300-500VAC, 50/60 Hz
  • Output: 2 c/o (SPDT) contacts rated at 250V / 4A
  • Monitors over/undervoltage, phase unbalance, and phase failure with adjustable threshold values
  • Phase sequence monitoring and selectable ON or OFF tripping delay
  • Tripping delay adjustable from instantaneous to 30s (0, 0.1-30s)
  • Sealable transparent cover for protection against unauthorized changes
  • Screw connection technology with double-chamber cage connection terminals


Product

Manufacturer Material ID -
CM-MPS.41S
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
300 Volt
Rated control supply voltage Us at AC 60HZ -
300 Volt
Width -
22.5 Millimetre
Height -
85.6 Millimetre
Depth -
103.7 Millimetre
Voltage measurement range -
300 Volt
Phase sequence monitoring -
Phase failure detection -
Function under voltage detection -
Function over voltage detection -
Phase imbalance monitoring -
Type of electric connection -
Screw connection
Rated control supply voltage at AC 50 Hz -
300 Volt
Rated control supply voltage at AC 60 Hz -
300 Volt
Max. permitted delay-on energization time -
0.2 Second
Min. adjustable delay-on energization time -
0.2 Second
Max. permitted off-delay time -
30 Second
Min. adjustable off-delay time -
0.1 Second
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
2
ABB

Availability Back Order

£231.97
