1SVR550882R9500

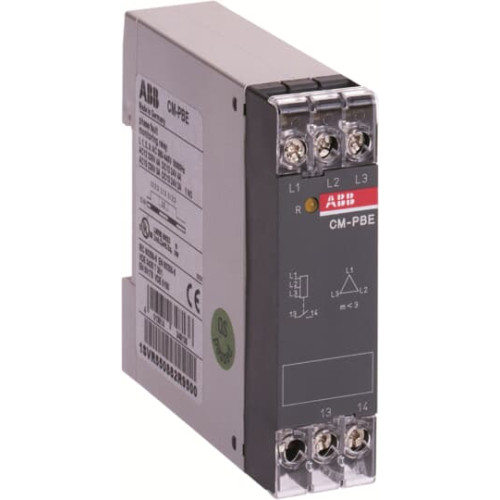

Phase Failure relay 1n/o, 3x 380-440VAC input voltage

Manufacturer's No: CM-PBE     Manufacturer: ABB
Phase Failure relay 1n/o, 3x 380-440VAC input voltage

Availability Back Order

£74.32
  • Phase Failure Relay
  • 1 Normally Open (N/O) output
  • Input voltage: 380-440VAC
  • Contacts rated at 250V / 4A
  • Monitors phase loss and undervoltage
  • Fixed threshold values
  • Suitable for monitoring three-phase mains


Product

Manufacturer Material ID -
CM-PBE
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
BG
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at DC -
- Volt
Rated control supply voltage Us at AC 50HZ -
380 Volt
Rated control supply voltage Us at AC 60HZ -
380 Volt
Width -
22.5 Millimetre
Height -
78 Millimetre
Depth -
78.5 Millimetre
Voltage measurement range -
380 Volt
Phase failure detection -
Type of electric connection -
Screw connection
Rated control supply voltage at AC 50 Hz -
380 Volt
Rated control supply voltage at AC 60 Hz -
380 Volt
Max. permitted delay-on energization time -
0.5 Second
Min. adjustable delay-on energization time -
0.5 Second
Max. permitted off-delay time -
0.15 Second
Min. adjustable off-delay time -
0.15 Second
Voltage type for actuating -
AC
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0
ABB

Availability Back Order

£74.32
