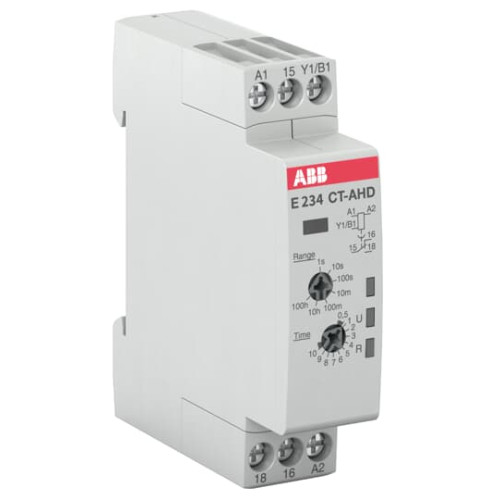

1SVR500110R0000

OFF-Delay, 1c/o, 0.05s - 100hrs, 24-48 V DC, 24-240 V AC input voltage

Manufacturer's No: CT-AHD.12     Manufacturer: ABB
OFF-Delay, 1c/o, 0.05s - 100hrs, 24-48 V DC, 24-240 V AC input voltage

Availability Available to order

£66.83
  • Type: Single-function electronic time relay
  • Function: OFF-delay (delay on break)
  • Time Ranges: 0.05 seconds to 100 hours
  • Input Voltage: 24-48 V DC, 24-240 V AC
  • Output: 1 c/o (SPDT) rated at 250 V / 6 A
  • Control Input: Voltage-related triggering
  • Model: CT-AHD.12
  • Series: CT-D timer range


Product

Manufacturer Material ID -
CT-AHD.12
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
63 Millimetre
Function delay on de-energization -
Height -
70 Millimetre
Nominal current -
6 Ampere
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
1
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Operating voltage at AC 50 Hz -
250 Volt
Operating voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Suitable for DIN rail (top hat rail) mounting -
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre
ABB

Availability Available to order

£66.83
