1SVR500020R1100

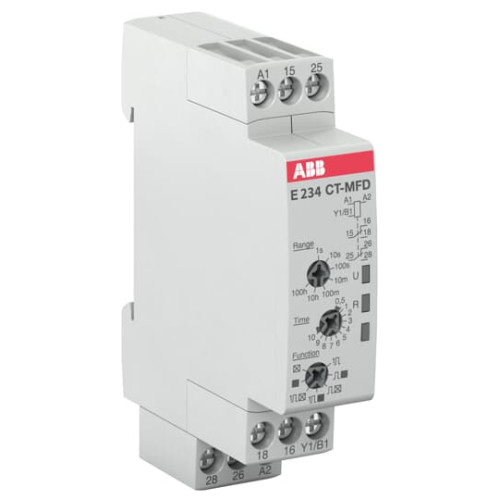

Multifunction Timer, 7 functions, 2 c/o, 0.05s - 100hrs, 12-240 VAC/DC input voltage

Manufacturer's No: CT-MFD.21     Manufacturer: ABB
Multifunction Timer, 7 functions, 2 c/o, 0.05s - 100hrs, 12-240 VAC/DC input voltage

Availability Available to order

£93.88
  • Multifunction Timer: CT-MFD.21
  • 7 timing functions
  • 7 time ranges from 0.05 seconds to 100 hours
  • Input voltage: 12-240 VAC/DC
  • 2 c/o (SPDT) output with contacts rated at 250V/5A
  • Control input for voltage-related triggering


Product

Manufacturer Material ID -
CT-MFD.21
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at AC 50HZ -
12 Volt
Rated control supply voltage Us at AC 60HZ -
12 Volt
Rated control supply voltage Us at DC -
12 Volt
Degree of protection (IP rating) -
IP20
Depth -
63 Millimetre
Function delay on de-energization -
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function flashing, starting with pulse, fixed time -
Function floating contact on de-energization -
Function floating contact on energization -
Function pulse shaping -
Height -
80 Millimetre
Nominal current -
5 Ampere
Number of outputs, delayed, change-over contact -
2
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
2
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Operating voltage at AC 50 Hz -
250 Volt
Operating voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at AC 50 Hz -
12 Volt
Rated control supply voltage at AC 60 Hz -
12 Volt
Rated control supply voltage at DC -
12 Volt
Suitable for DIN rail (top hat rail) mounting -
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre
ABB

Availability Available to order

£93.88
