1SVR500210R0100

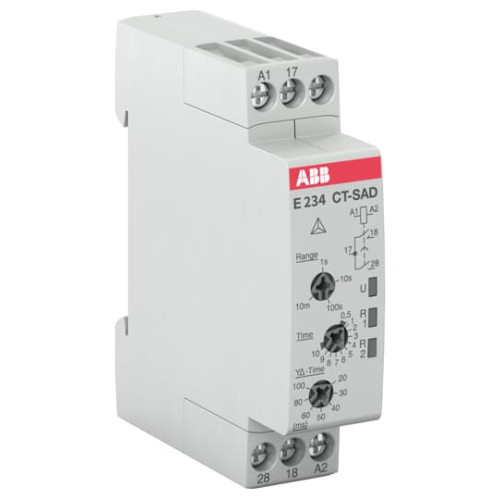

Star Delta timer (Adjustable Transistion time) 2 x n/o, 0.05s - 10min, 24-48 V DC, 24-240 V AC input voltage

Manufacturer's No: CT-SAD.22     Manufacturer: ABB
Star Delta timer (Adjustable Transistion time) 2 x n/o, 0.05s - 10min, 24-48 V DC, 24-240 V AC input voltage

Availability Available to order

£70.11
  • Type: Single-function electronic time relay
  • Function: Star-delta with adjustable transition time
  • Time Ranges: 0.05s to 10min
  • Transition Time: 20ms to 50ms
  • Input Voltage: 24-48 V DC, 24-240 V AC
  • Output: 2 x n/o contacts rated at 250 V / 5 A


Product

Manufacturer Material ID -
CT-SAD.22
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

-
ABB
Rated control supply voltage Us at AC 50HZ -
24 Volt
Rated control supply voltage Us at AC 60HZ -
24 Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP rating) -
IP20
Depth -
63 Millimetre
Function star-delta -
Height -
70 Millimetre
Nominal current -
5 Ampere
Number of outputs, delayed, change-over contact -
0
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
2
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
2
Operating voltage at AC 50 Hz -
250 Volt
Operating voltage at AC 60 Hz -
250 Volt
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Suitable for DIN rail (top hat rail) mounting -
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type (operating voltage) -
AC/DC
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre
ABB

Availability Available to order

£70.11
