3RT20353NB300CC0

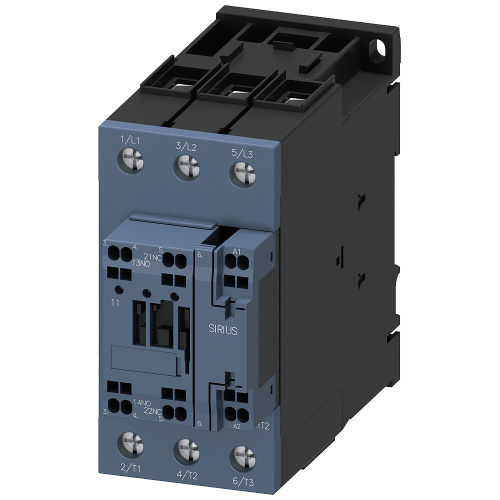

3RT2 Contactor, S2, 18.5kW (40A), 24 VDC, 1 NO / 1 NC, spring

Manufacturer's No: 3RT2035-3NB30-0CC0     Manufacturer: Siemens

Availability Back Order

£196.19
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 41 A and 18.5 kW / 400 V
  • 3-pole contactor with integrated varistor
  • Operating voltage: 20-33 V AC/DC, 50/60 Hz
  • Auxiliary contacts: 1 NO + 1 NC
  • Main circuit: screw terminal, control and auxiliary circuit: spring-loaded terminal
  • Size: S2
  • Communication-capable

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Question and Answer (Q&A video)
Presentation video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2035-3NB30-0CC0
Net Weight -
1.12kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Number of normally closed contacts as main contact -
-
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
20 Volt
Rated control supply voltage Us at AC 60HZ -
20 Volt
Rated control supply voltage Us at DC -
20 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
20 Volt
Rated control supply voltage at AC 60 Hz -
20 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Rated operation current Ie at AC-3, 400 V -
41 Ampere
Rated operation current Ie at AC-4, 400 V -
35 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Rated operation power NEMA -
22.0649625 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC

Availability Back Order

£196.19
