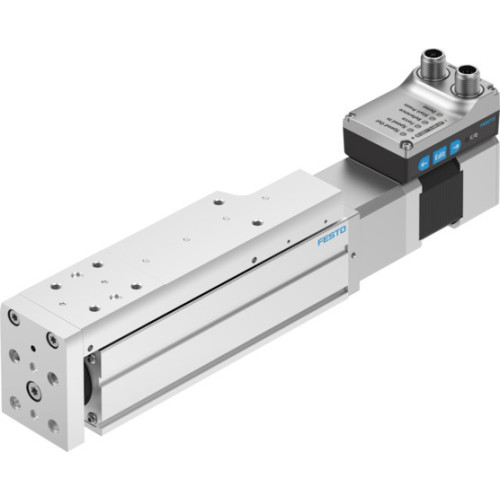

EGSS-BS-KF-45-100-10P-ST-M-H1-PLK-AA Mini slide unit

Manufacturer's No: EGSS-BS-KF-45-100-10P-ST-M-H1-PLK-AA     Manufacturer: Festo
EGSS-BS-KF-45-100-10P-ST-M-H1-PLK-AA Mini slide unit

Availability Back Order

£1,123.77
  • Mini slide unit
  • Working stroke: 100 mm
  • Size: 45
  • Spindle diameter: 10 mm
  • Spindle pitch: 10 Y13
  • Guide: Recirculating ball bearing guide
  • Design: Electric mini slide with ball screw drive and integrated drive
  • Motor type: Stepper motor
  • Position detection: Motor encoder, proximity switch
  • Rotor position sensor: Absolute single-turn encoder with magnetic measuring principle

Read more

  • Protective function: Temperature monitoring
  • Additional functions: User interface, integrated end-position sensing
  • Display: LED for ready status indication
  • Max. acceleration: 5 m/s²
  • Max. speed: 0.25 m/s
  • Repetition accuracy: ±0.015 mm
  • Duty cycle: 100%
  • Insulation protection class: B
  • Nominal voltage DC: 24 V
  • Nominal current: 3 A
  • Parameterisation interface: IO-Link, user interface
  • Rotor position transducer resolution: 16 bit
  • Permissible voltage fluctuations: ±15%
  • Degree of protection: IP40, Protection class: III
  • Ambient temperature range: 0°C to 50°C
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Corrosion resistance class: 0 - No corrosion stress
  • Cleanroom class: Class 9 according to ISO 14644-1
  • Storage temperature range: -20°C to 60°C
  • Max. radial force at drive shaft: 340 N
  • Max. feed force: 120 N
  • Reference service life: 5000 km
  • Maintenance interval: Life-time lubrication
  • Product weight: 1867 g
  • Material: Anodised wrought aluminium alloy, high-alloy stainless steel, rolled steel
  • Logic interface features: Configurable, not galvanically isolated
  • IO-Link features: SIO-Mode support, Device V 1.1 protocol version, COM3 communication mode
  • IO-Link data content: Process data length IN/OUT, Service data IN, Min. cycle time, Data storage required
  • Max. cable length: 15 m for outputs, 15 m for inputs, 20 m with IO-Link operation
  • Switching logic: PNP (positive switching)
  • Logic interface connection technology: M12x1, A-coded according to EN 61076-2-101

Accessories



Product

Manufacturer Material ID -
EGSS-BS-KF-45-100-10P-ST-M-H1-PLK-AA
Net Weight -
1.90kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
39121459
